Sent Items Update

As signatures and disclaimers are added to sent emails server side (by the CodeTwo Email Azure Service), they are not visible in the sender's Sent Items folder. To let you see the signatures in the sent mail, we have equipped CodeTwo Email Signatures for Office 365 with the Sent Items Update (SIU) feature. SIU updates your sent messages with signatures after processing by the program. In this article you will learn more about this feature.

How Sent Items Update works

The Sent Items Update works as a separate service and is installed along with the CodeTwo Email Azure Service. SIU needs to be registered in your tenant's Azure Active Directory in order to update Sent Items in the mailboxes of your users.

Important

Sent Items Update is hosted on MS Azure servers. The service is totally independent of your mail flow and the functioning of your Office 365 tenant, which means it has no influence on your email processing and delivery time. Your emails are not stored anywhere. Moreover, Sent Items Update does not require any service accounts to operate as the entire authentication and authorization process uses OAuth 2.0. Learn more about security

Updating sent emails with signatures usually takes a few seconds (it might take longer if the SIU service runs in high-volume or low-performance environments).

Which signature is inserted when an email is sent to both internal and external recipients

When you send an email to both internal and external recipients, to whom different rules (and signatures) apply, Exchange Online usually splits this email into two copies (one with external and one with internal recipients), and each copy gets the corresponding signature from CodeTwo software. However, you will only see one email in your Sent Items folder. This email will include either the external or internal signature, depending on which of the two message copies was processed last by Exchange Online (we do not have any impact on that processing). What matters is the fact that even though you only see one signature in the Sent Items folder, your recipients get the right signature (internal or external), based on their affiliation.

Emails sent as / on behalf of other users

If you enabled message copying in your Exchange Online, the Sent Items Update works with messages sent by users with delegate (Send As or Send on Behalf) rights to other mailboxes.

SIU updates messages in the Sent Items folder of a person who appears to be the sender:

  • If User A has the Send As permission to the User B's mailbox, and when sending a message User A enters User B's email address into the From field, the message will be considered as sent by User B. Therefore, the rules covering User B will be executed and the SIU service will update the message in the Sent Items folder of User B.
  • If User A has the Send on Behalf right on User B's mailbox and when sending a message User A enters the email address of User B into the From field, the message will be considered as coming from User A, and the rules covering User A will be executed. The SIU service will update the Sent Items folder of User A.

Learn how to assign delegate rights in Office 365

Emails sent as / on behalf of shared mailboxes

If you use shared mailboxes, the SIU works in the same way as described in Updating sent items for users with delegate permissions. Message copying needs to be enabled for shared mailboxes.

See this Knowledge Base article to learn more about using the software with shared mailboxes.

How to turn on Sent Items Update

By default, the Sent Items Update service is disabled and needs to be enabled by an admin in the CodeTwo Admin Panel to start updating sent emails.

The Sent Items Update works per tenant, i.e. you have to turn it on for each tenant separately.

To enable the Sent Items Update:

  1. Log in to your CodeTwo Admin Panel (global versionOffice 365 Germany version).
  2. Enter the management pages of a chosen tenant by clicking the Manage tenant (ESIG for O365 settings button2 13px) button next to the tenant's name.

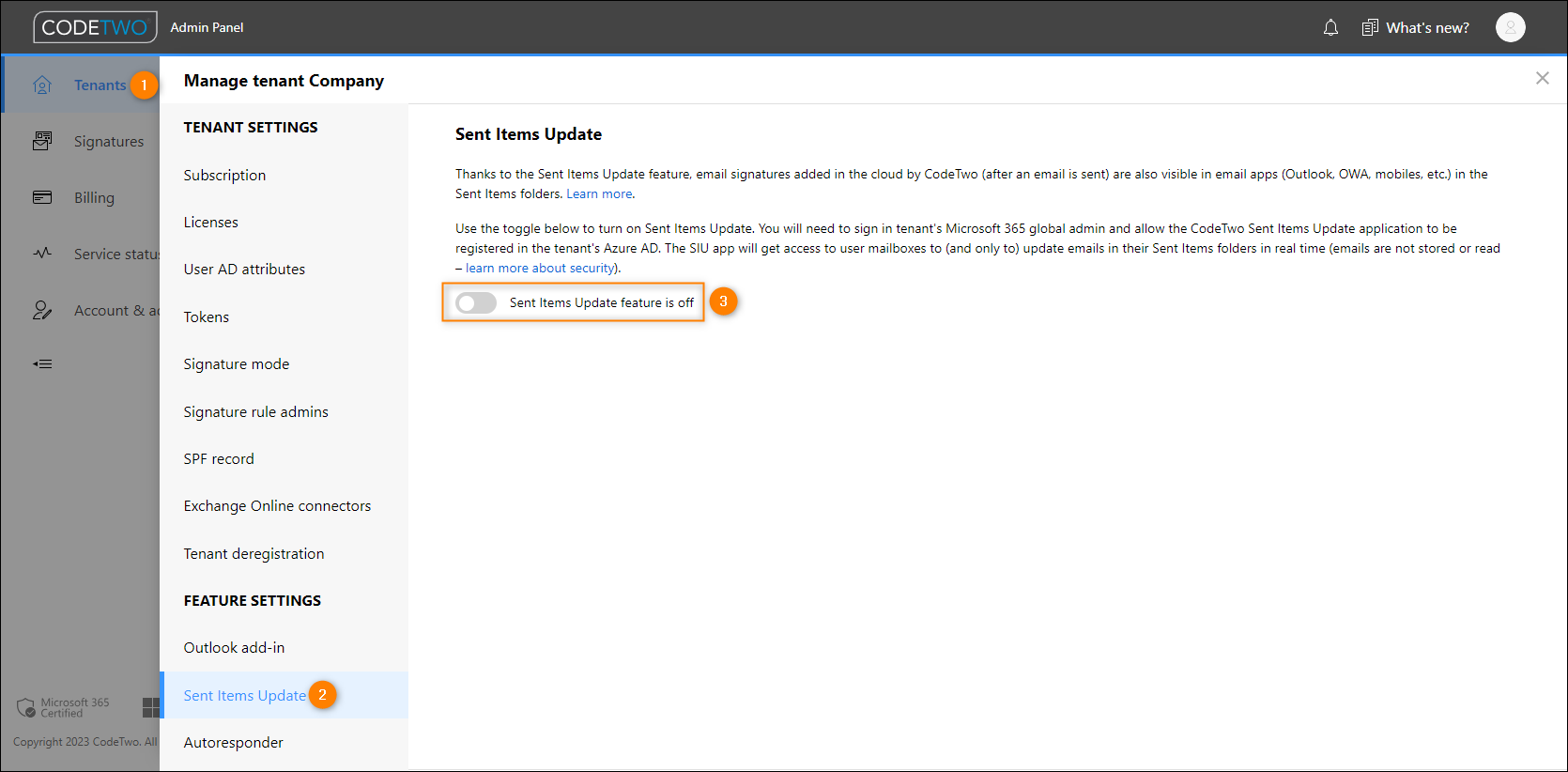

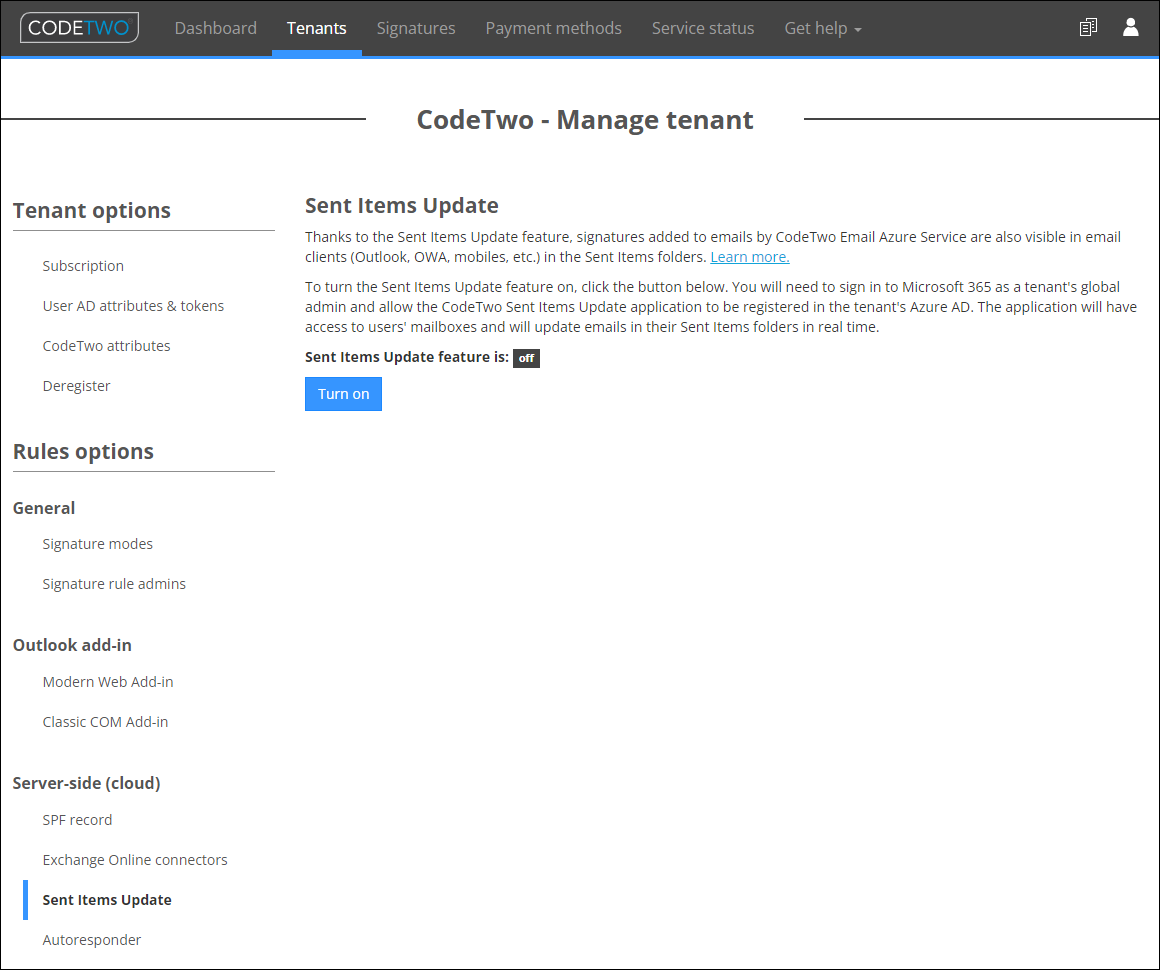

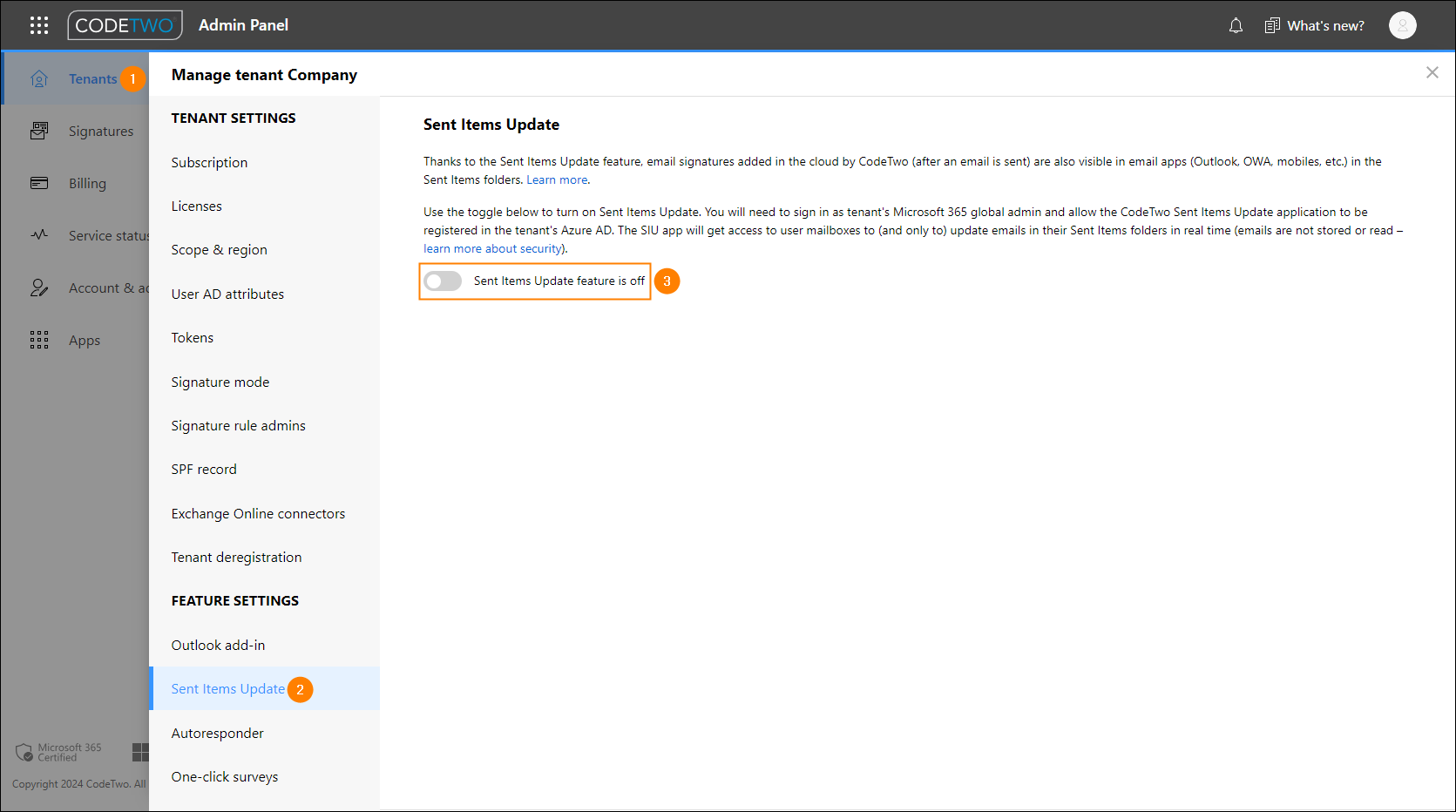

  3. Go to the Sent Items Update section (Fig. 1.) and click Turn on.

    Info

    If you do not see the Sent Items Update section, contact CodeTwo Support.

Enabling SIU in the User Panel.

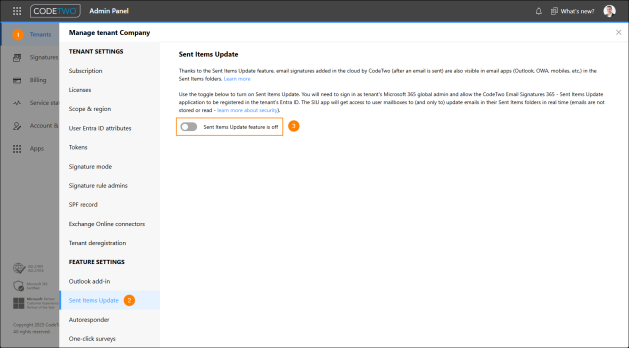

Fig. 1. Enabling SIU in CodeTwo Admin Panel.
  1. Log in using your Office 365 tenant global admin credentials.
  2. Accept the permissions required for the CodeTwo SIU installer.
  3. The Sent Items Update should start working within a few minutes.

Important

Be aware that the updating process starts after an email is passed to EOP, so it may take from a few to over a dozen seconds before a user sees an updated message in the Sent Items folder.

Also, note that the SIU service only updates messages in the original Sent Items folder. If a user has any OWA/Outlook rules enabled that instantly move messages from the Sent Items folder somewhere else (including the subfolders of the Sent Items folder), the SIU service will not be able to find and process them. If possible, execute such rules manually or with a delay, to allow some time for the SIU service to update your sent emails.

Troubleshooting

Messages are not updated in the Sent Items folder

If you already enabled the Sent Items Update service and the messages are not updated, follow the steps below.

  • Check with the recipient if the sender's emails are stamped with signatures at all, to rule out improper signature rules or connectors' configuration as the source of the problem. Also, check the service's status.
  • Log in to Outlook on the web (OWA) to access your Sent Items folder directly on the server. If you see that messages are updated in the Sent Items folder in OWA, this means the service is working properly and the problem lies in your email client.

Important

If you use Microsoft Outlook, emails in your Sent Items folder might not always be refreshed and displayed correctly. This is usually caused by Outlook's default behavior in the Cached Exchange mode, and is not related to the SIU service. See this article to learn how to solve this problem.

Signatures are not displayed in Outlook on the web (OWA)

Emails in the Sent Items folder are not always correctly displayed in Outlook on the web (OWA). Sometimes to see the signatures you might need to refresh the whole OWA page or open your message in a separate window. This is an Outlook on the web issue, not related to the CodeTwo software. See this Knowledge Base article to learn more.
