Register CodeTwo application in Azure Active Directory

The Sent Items Update (SIU) service in CodeTwo Exchange Rules Pro connects to Microsoft 365 (Office 365) by using the secure OAuth 2.0 authorization protocol. To enable this connection, first you need to register the CodeTwo application in Azure AD for all Microsoft 365 tenants that will be used in your CodeTwo software. Next, to allow the CodeTwo application to access your data and perform the necessary tasks, you also need to grant the necessary permissions to that application.

Important

Keep in mind that CodeTwo Exchange Rules Pro can perform the registration automatically (learn more). You simply need to provide an Office 365 global admin credentials in server connection wizard.

Use the links below for guidelines on how to register the CodeTwo application in Azure AD:

  1. Register a new application in Azure AD
  2. Configure application permissions
  3. Assign certificates / secrets to an app in Azure

Registering a new application in Azure AD

  1. Sign in to your Azure Active Directory admin center.

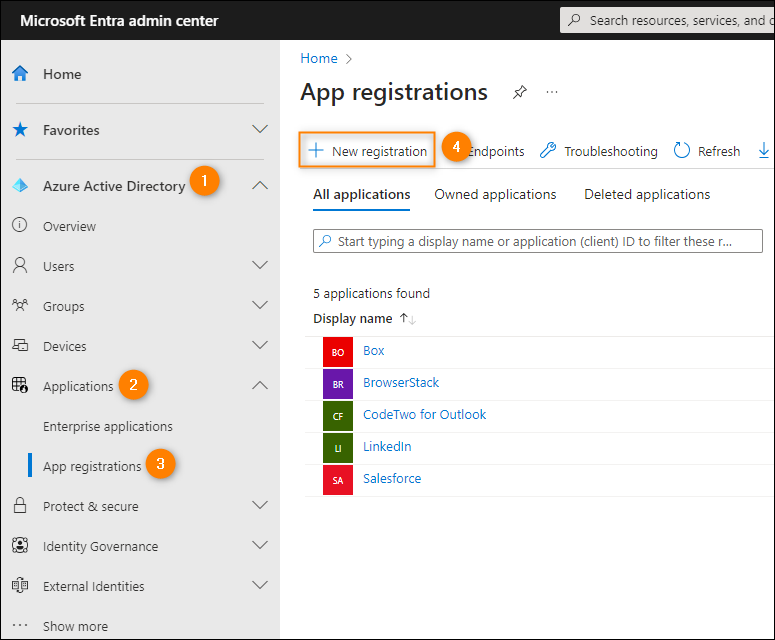

  2. Navigate to Azure Active Directory > App registrations and click New registration (Fig. 1.). This opens the Register an application page.

840-1 New registration in Azure AD
Fig. 1. The App registration page in Azure AD.

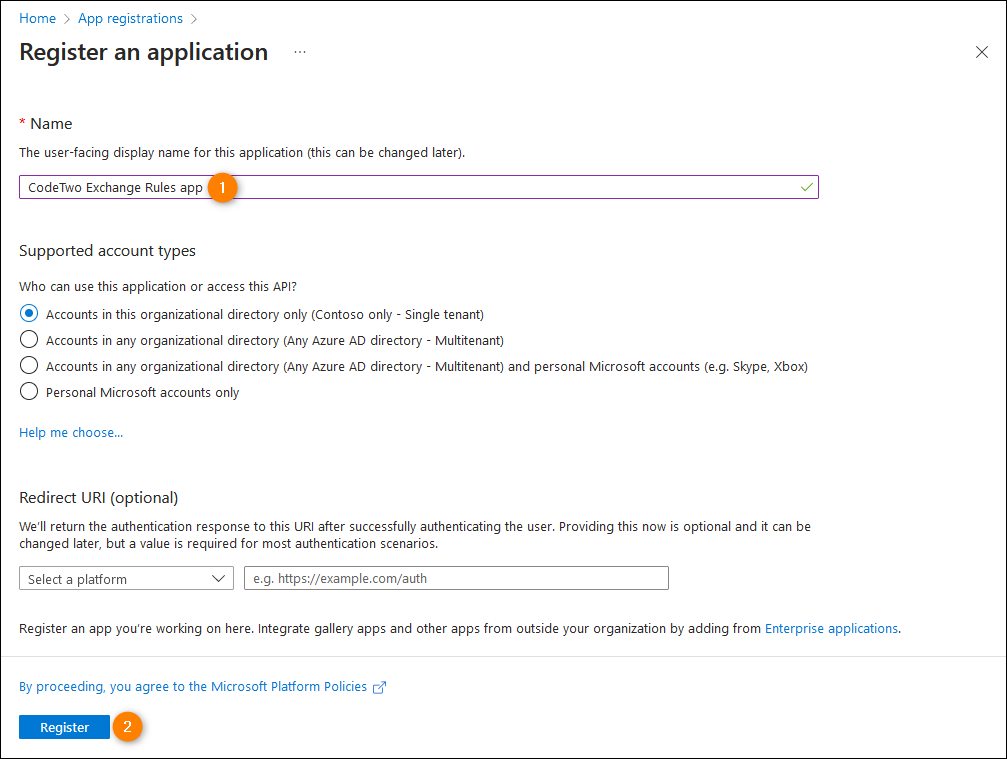

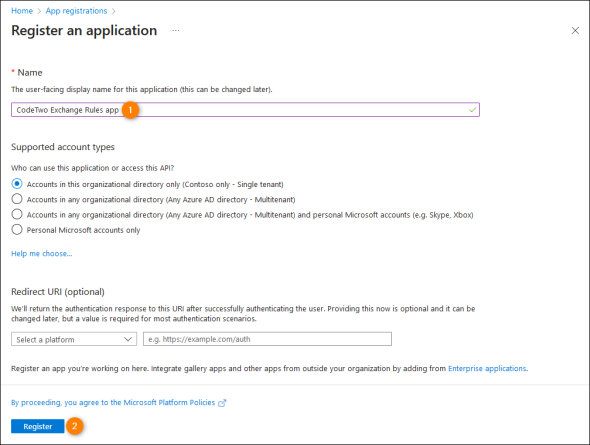

  1. Enter a name for the application and click Register (Fig. 2.). You can leave the other options to their defaults.

840-2 Registering a new app in Azure
Fig. 2. Registering the CodeTwo application with Azure AD.

Configuring application permissions

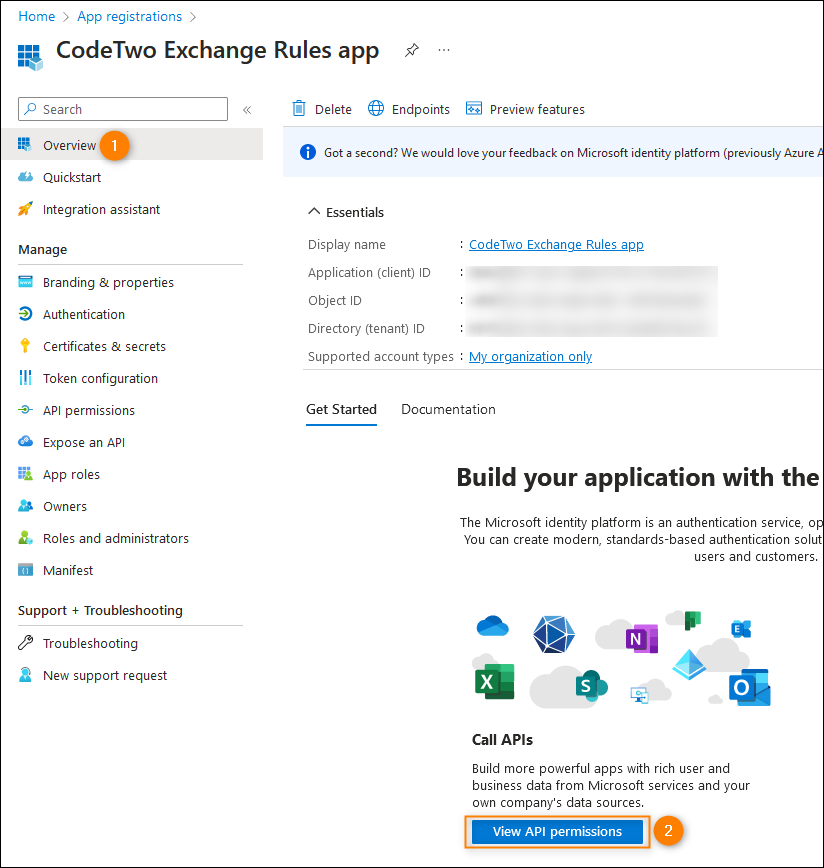

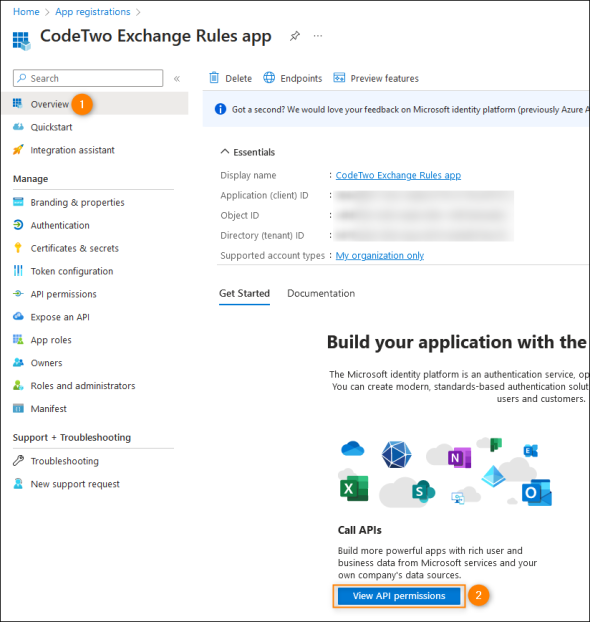

  1. On the application Overview page, click View API permissions (Fig. 3.). The API permissions page will open.

840-3 Accessing API permissions page
Fig. 3. Accessing the API permissions page.

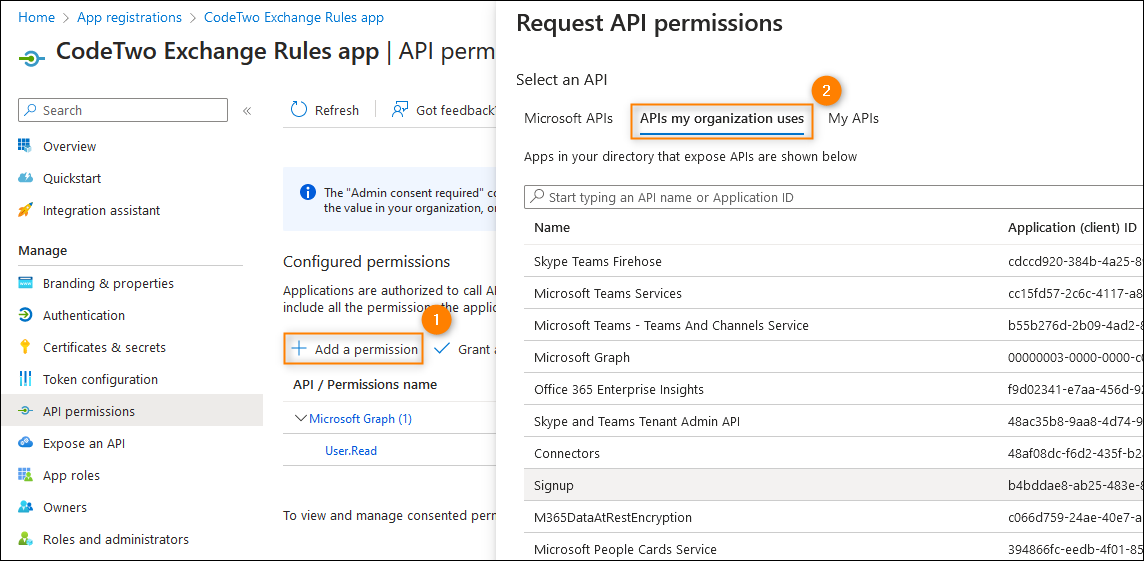

  1. Click the Add a permission button and in the pane that opens click APIs my organization uses (Fig. 4.).

Listing all APIs available for your organization.
Fig. 4. Listing all APIs available for your organization.

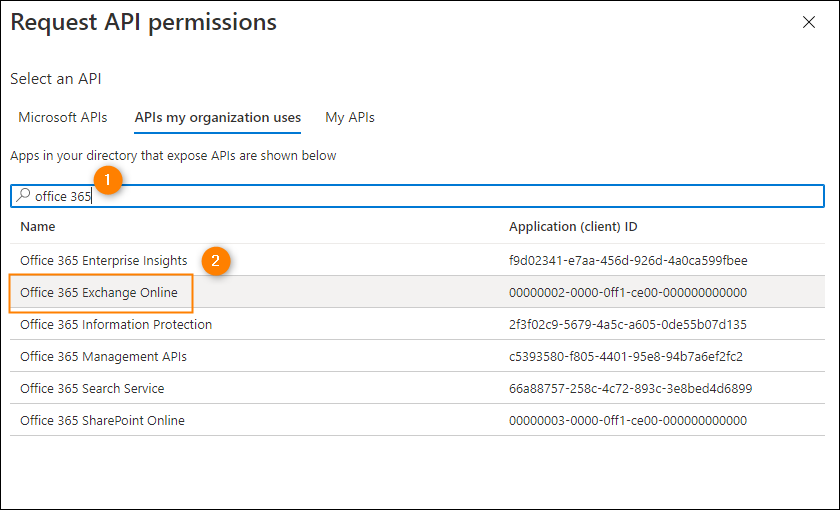

  1. Enter Office 365 in the search box and select Office 365 Exchange Online (Fig. 5.).

Finding the Exchange Online API.
Fig. 5. Finding the Exchange Online API.

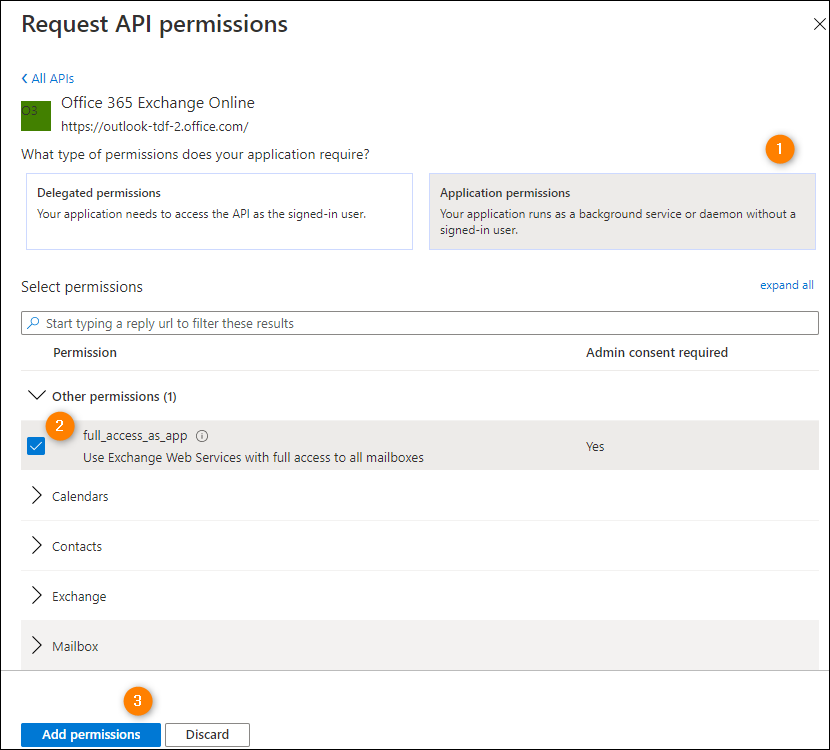

  1. Click Application permissions, expand Other permissions, select full_access_as_app and then click Add permission (Fig. 6.).

840-6 Adding EWS permission
Fig. 6. Adding a new permission to an application in Azure AD.

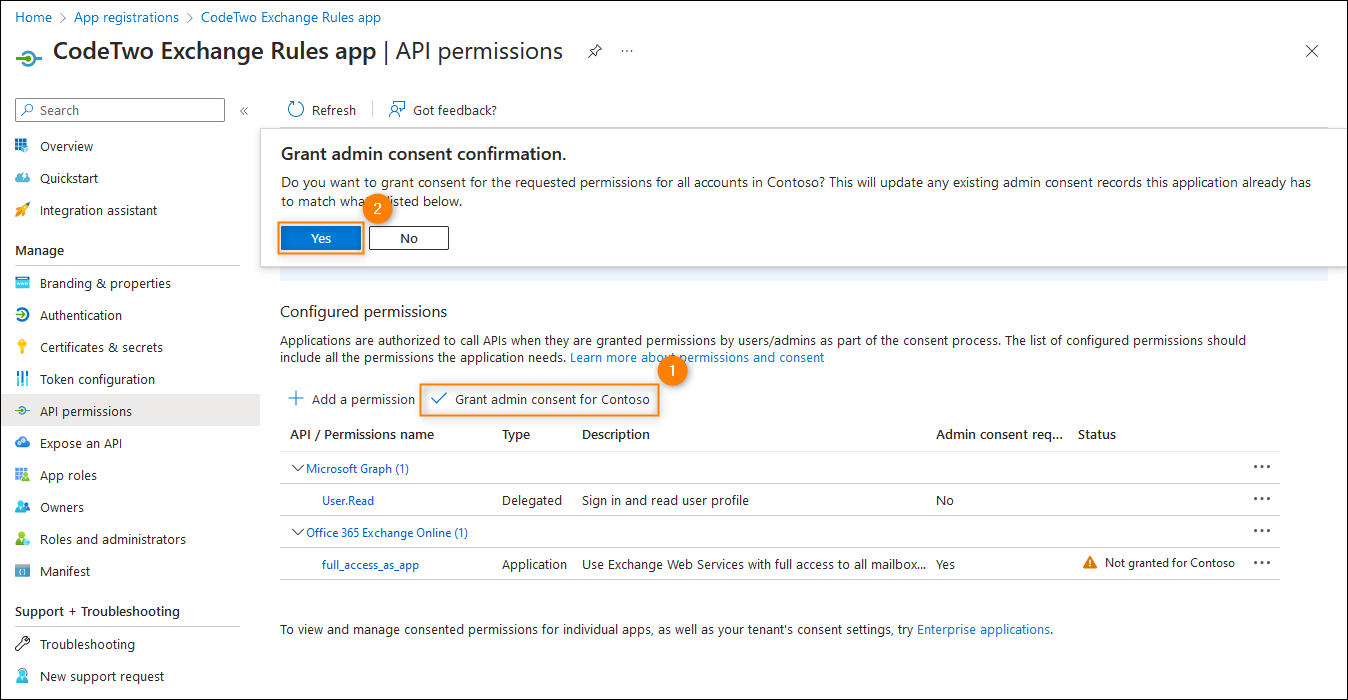

  1. Back on the API permissions page, click the Grant admin consent button (once it becomes available) and then click Yes to confirm (Fig. 7.).

840-6 Granting admin consent
Fig. 7. Granting the necessary consents.

Assigning certificates / secrets in Azure AD

You need to assign a certificate or client secret (app password) to the newly added application. This will allow the OAuth protocol to prove the application’s identity. Follow the steps below to assign a certificate or add a client secret to the CodeTwo application registered in Azure AD.

  1. Navigate to Azure Active Directory > App registrations and select the newly added application.
  2. In the navigation menu, click Certificates & secrets (Fig. 8.). Now, you need to assign either a certificate or client secret to the CodeTwo application.

840-6 Accessing the Certificates & secrets page
Fig. 8. Accessing the Certificates & secrets page.

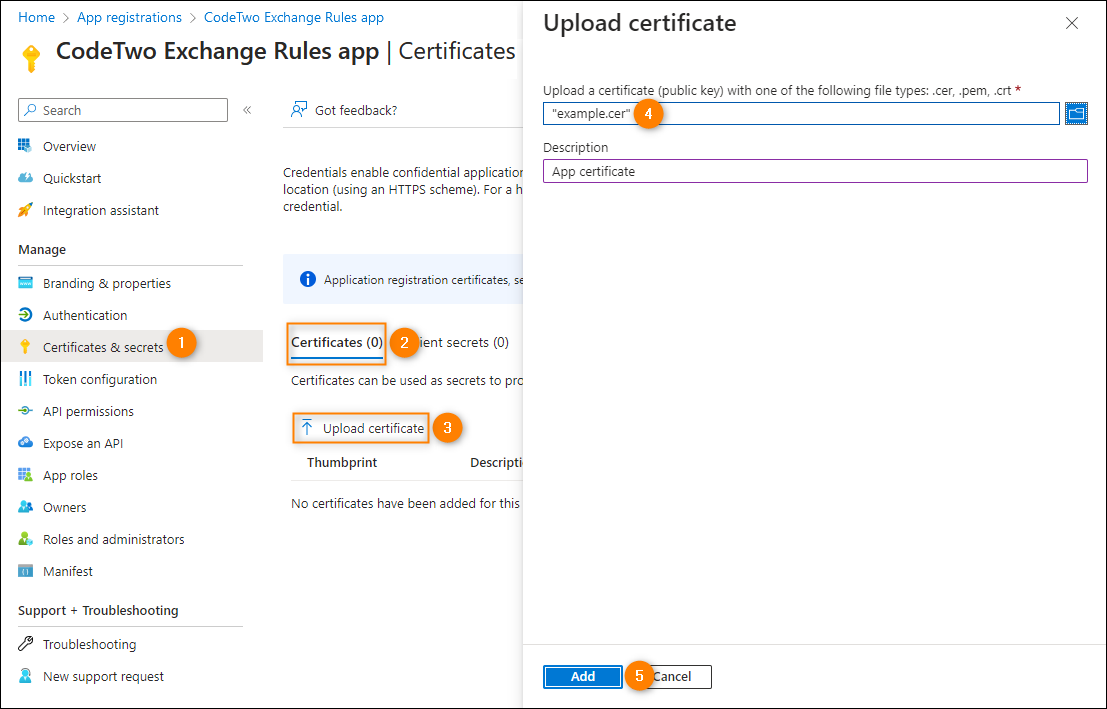

  1. 3a To assign a certificate, click the Upload certificate button, select your certificate file and click Add (Fig. 9.). The certificate needs to be signed with a key size of 2048 bits.

Assigning a certificate in Azure AD
Fig. 9. Assigning a certificate in Azure AD.

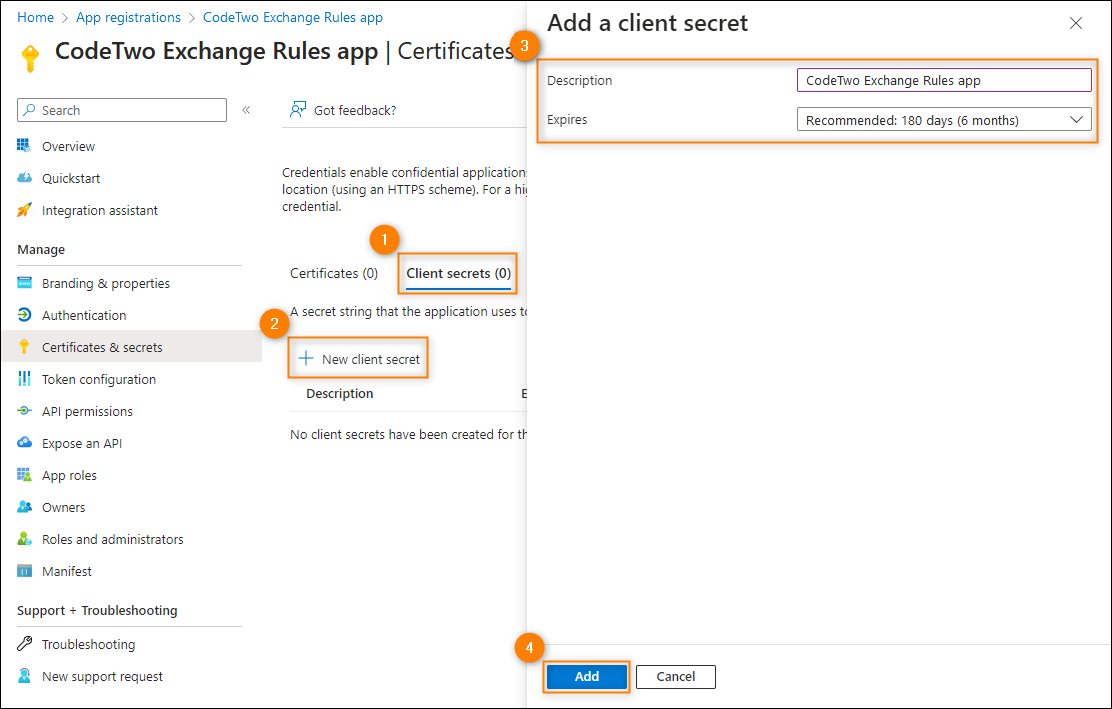

  1. 3b To add a client secret, click the New client secret, enter a short description, select the expiration time (whichever suites your needs), and click Add (Fig. 10.).

Important

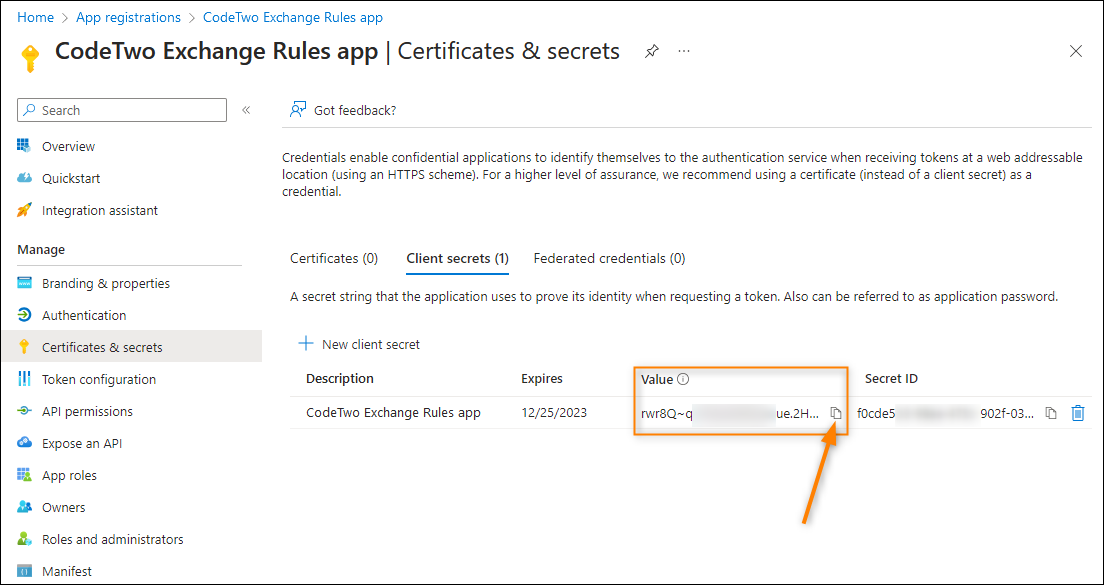

Make sure to copy the client secret value to clipboard or use it in your CodeTwo application straightaway, because once you refresh the page, you will not be able to view that value again. You will have to create another client secret.

840-8 Crating a new client secret in Azure AD
Fig. 10. Crating a new client secret for an application registered in Azure AD.

Once done, the application registration process is completed. You can now configure the SIU service by following these steps.
