The Message direction condition is used within a rule to specify the message direction type that, once met, will trigger the program to process the rule and perform the associated action(s).
To define the message direction, expand the Field's context menu within the Conditions tab and choose Message direction (Fig. 1.).

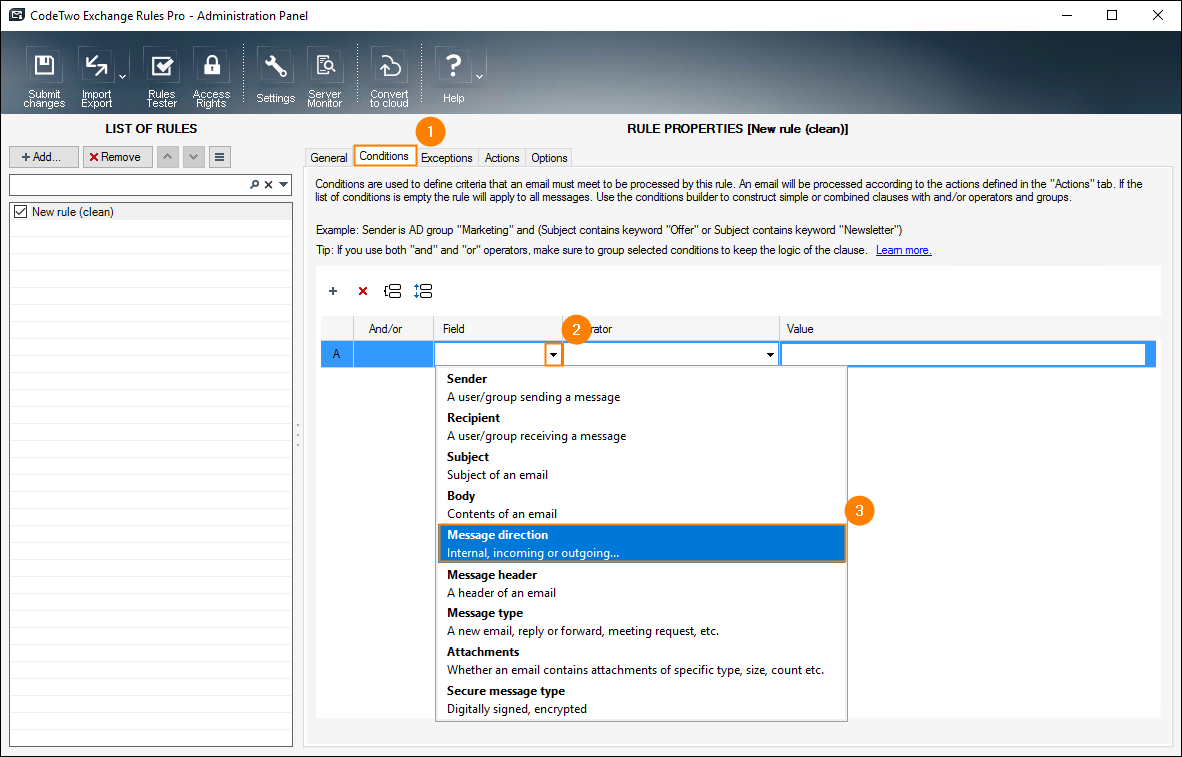

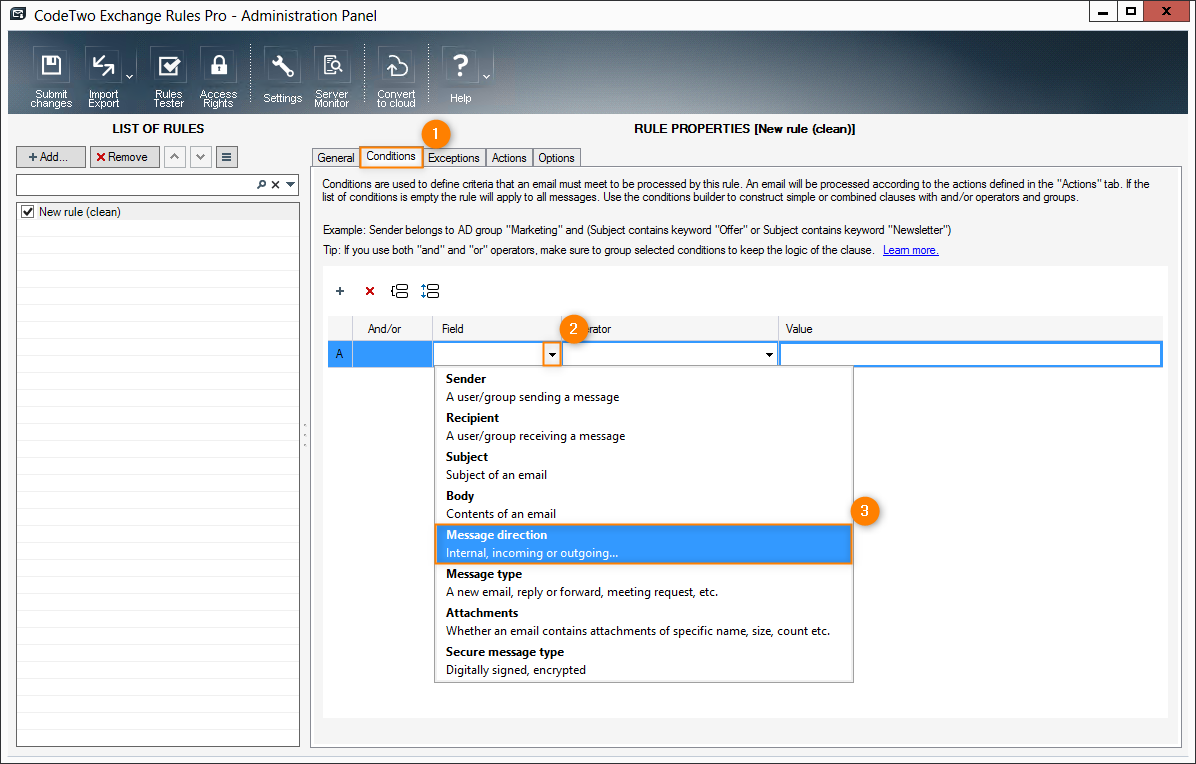

|Fig. 1. Choosing the Message direction condition.|
There are two factors (Fig. 2.) that need to be configured within this condition:
- Operator - defines how the condition will be executed. The execution method may only be set to true.
In this particular condition, the operator may be set to trigger the action if the message direction:
- is internal
- is outgoing (note that if a particular external email address is added to your Active Directory contact list, it will be treated by the program as an internal email address and this condition will be false - see our Knowledge Base article to learn more)
- is incoming
- Actual condition value - here you define the expected value of the condition that will trigger the rule to apply the action.

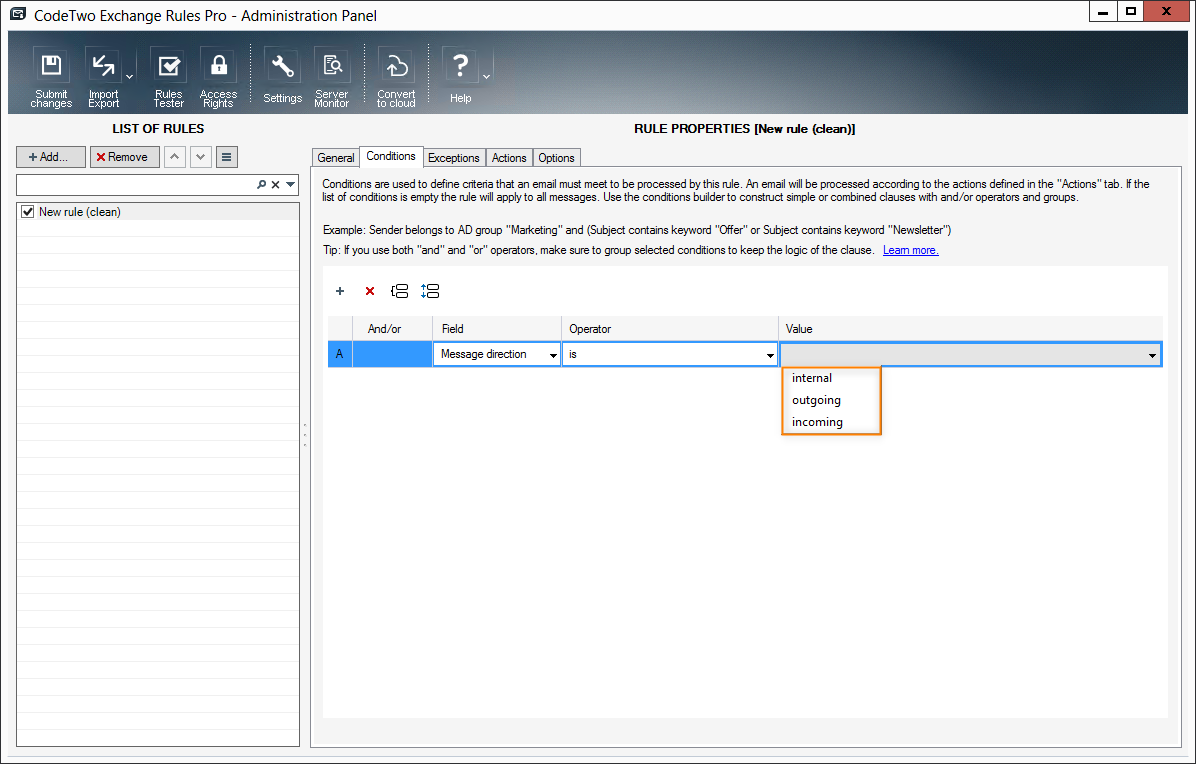

|Fig. 2. Configuring the Message direction condition.|
Message type - this article describes how to configure the Message type condition.
