How to find and change Exchange attachment size limit

How to find and change Exchange attachment size limit

To protect mailbox databases from uncontrolled growth due to massive use of mail attachments, Microsoft Exchange 2019/2016/2013/2010/2007 incorporates a special set of message size limits in its configuration.

The video below provides a step-by-step guidance on how to check and change email size limit. Below the video walkthrough, you can find a detailed description of the same procedures.

Message size limits

There are basically three places where you can configure default message size limits on Exchange:

  • Organization transport settings
  • Send/receive connector settings
  • User mailbox settings.

To check your server’s current limit you can open and access them via Exchange Management Console (EMC), however PowerShell offers a faster method that is available also on Office 365. Run the following code in the Exchange Management Shell, or after connecting with Office 365 via remote PowerShell session:

get-transportconfig | ft maxsendsize, maxreceivesize  get-receiveconnector | ft name, maxmessagesize  get-sendconnector | ft name, maxmessagesize  get-mailbox Administrator |ft Name, Maxsendsize, maxreceivesize

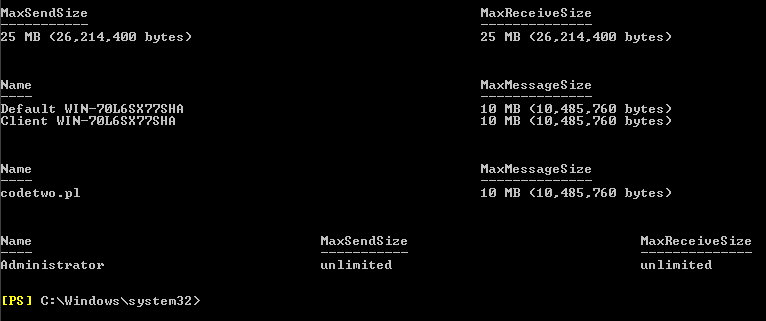

The result should be similar to the example visible on the screenshot below, which presents following limits:

  • Transport service accepts messages no larger than 25 MB
  • All send/receive connectors have message size limit set to 10 MB
  • There is no size limit set on the Administrator mailbox.
pslimit

Bear in mind that the last line of the script (Get-Mailbox) returns information only about the Administrator’s user mailbox. Replace it with the user name you want to check. Alternatively, you can remove the Administrator phrase entirely, however this will result in a list of all mailboxes present on the Exchange.

To change the above size limits you can use a PS script too. The example below shows how to reduce the size of messages accepted by the transport service from the 25 MB to 15 MB.

Set-TransportConfig -MaxSendSize 15MB -MaxReceiveSize 15MB

Syntax of the command for send/receive connectors is similar, however you need to execute it for each connector’s identity. The same rule applies to mailboxes – you need to specify which mailboxes to affect by the command. Therefore, it is easier to pass over the result of the  Get- command directly to the Set- command. To do so – use the piping feature of PowerShell. E.g. setting a 10MB message size limit in  all mailboxes requires the following command:

Get-Mailbox | Set-Mailbox -MaxSendSize 10MB -MaxReceiveSize 10MB

The Get-mailbox command result is passed with the “|” pipe symbol to the Set-Mailbox command. This method works also for the send/receive connectors. The final script that sets the transport message size limit to 15 MB, send/receive connectors limits to 10 MB each, and the message size limit in all mailboxes to 10 MB presents as follows:

get-transportconfig | Set-TransportConfig -maxsendsize 15MB -maxreceivesize 15MB; get-receiveconnector | set-receiveconnector -maxmessagesize 10MB; get-sendconnector | set-sendconnector -maxmessagesize 10MB; get-mailbox | Set-Mailbox -Maxsendsize 10MB -maxreceivesize 10MB

There is a drawback however. Limits presented above are set for the message as a whole, no matter if they contain attachments or not. If the message is extremely large and contains no attachment, it will be stopped.

Attachment size limit

The only way to set size limits exclusively for attachments is to use a hub transport rule, which will detect and block messages if their attachments are over a specified size threshold.

To set up the rule you can use the below PowerShell script, as the method is quite simple:

New-TransportRule -Name LargeAttach -AttachmentSizeOver 10MB -RejectMessageReasonText "Message attachment size over 10MB - email rejected."

The command creates a rule named LargeAttach that is triggered by any email with attachments larger than 10MB. The rule then stops the message from delivery, and sends back a notification about that fact to the original sender.

Setting up message and attachment size limits to stop bloating your mailbox database seems quite reasonable. However, this still does not resolve the problem fully, as over time the database will grow anyway due to increased email traffic. Even small attachments can affect your server when they are sent in large quantities. Sure, you can even lower limits, but this is a dead end situation. In today’s world a 5MB PDF attachment is nothing uncommon, and it is safe to assume that these numbers will only grow.

Fortunately, there is a solution that keeps your database safe and allows even large attachments to reach your organization – CodeTwo Exchange Rules Pro. It features the attachment strip/compress function. It gives you ability to remove attachments on the fly from messages traveling through your server and place them in a different, separate repository. It also leaves a link to that repository in the message itself so the recipient can still access the file with no problem – check out all available email attachment stripping and compressing capabilities of CodeTwo Exchange Rules Pro.
