Connecting to target Office 365
Once you installed CodeTwo Office 365 Migration and configured a source environment, it is time to create a connection to your target Office 365 tenant.
To configure a target connection, you need to launch the Target server connection wizard. There are two ways to do that:

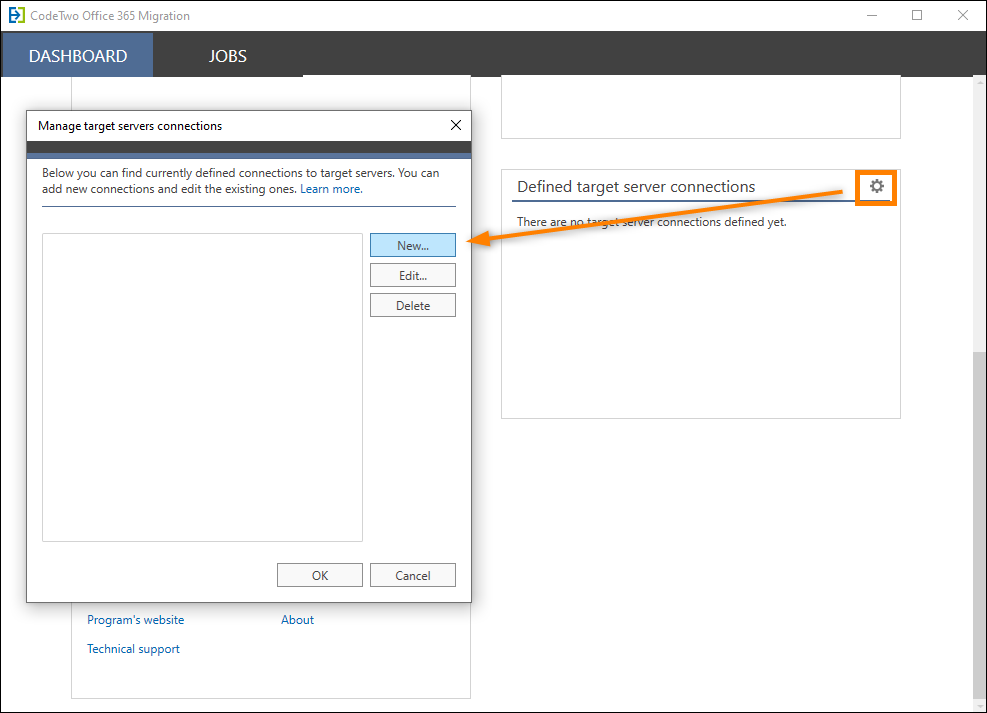

- click the Settings () button on the Defined target server connections card, and then click New (Fig. 1.); or
- click Create a new migration job on the How to start card, go to the Target mailboxes step, and then choose Add new target connection from the Target server drop-down list.
- Office 365 cloud
- Application registration
- Application details (manual registration only)
First, choose if you want to connect to Office 365 global or to Office 365 Germany (Fig. 2.). Since Office 365 Germany and Office 365 global (or simply Office 365) are completely independent clouds, it is not possible to use the Office 365 global credentials to log in to Office 365 Germany and vice versa. If your onmicrosoft email address ends with .de, for example firstname.lastname@example.org, you’re using the Office 365 Germany cloud. Read more about Office 365 Germany.
To connect to your Office 365 tenant, you need to register CodeTwo Office 365 Migration in that tenant's Azure Active Directory. By doing so, the program will be able to authenticate with Office 365 via OAuth 2.0, access and/or create target mailboxes and perform the migration tasks on your behalf.
There are two options available:

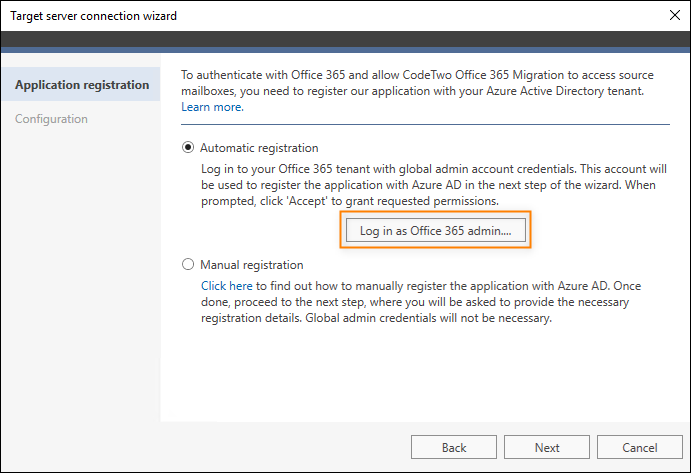

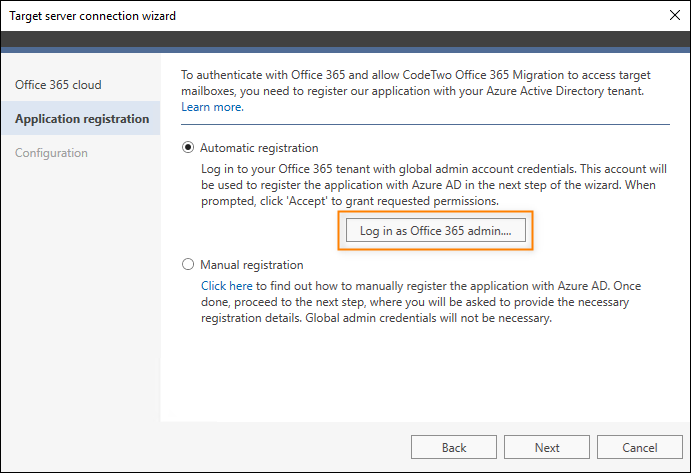

Select this option if you want the CodeTwo migration application to register itself in your Azure AD. Click Log in as Office 365 admin (Fig. 3.) to load the Azure sign-in page.
Next, provide the credentials of a global admin of your Office 365 tenant and accept all permissions the application has requested to be able to perform the migration (Fig. 4.).
The application will be registered as CodeTwo Office 365 Migration Target in your Azure AD and will be signed with a unique certificate, valid for 5 years.
You can view the application registration details by signing in to your Azure Active Directory admin center and navigating to Azure Active Directory > App registrations.
Keep in mind even if you delete this connection from the program, or once the migration is finished, the application will not be deleted from your Azure AD. To delete it manually, follow these steps.

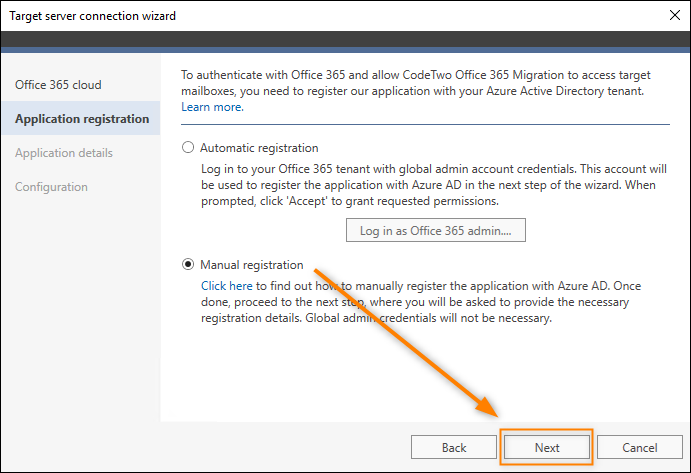

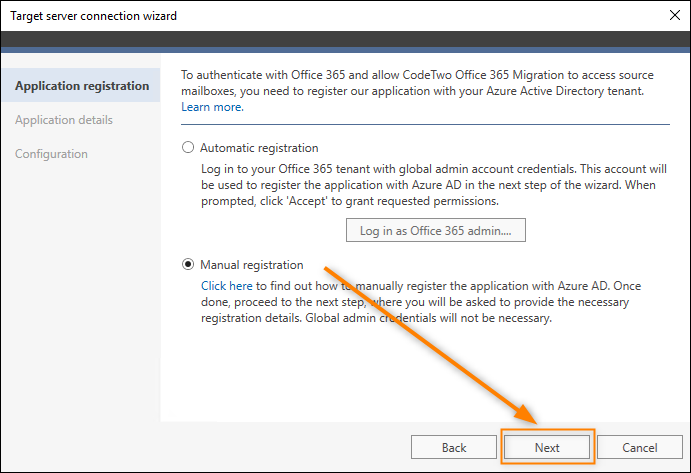

Select the Manual registration option (Fig. 5.) if you prefer to register the CodeTwo migration application in Azure AD by yourself. A step by step guide on how to do so is available in this Knowledge Base article. Click Next to proceed to the next step, where you need to provide the application registration details.
Each time you open a new Office 365 server connection wizard and use the Automatic registration option, a new CodeTwo migration application will be registered in your Azure AD tenant (this does not apply to situations where you edit an existing connection). If you don't want to duplicate the instances of our application in your tenant, select the Manual registration option and provide the registration details of the previously registered CodeTwo migration application in the Application details step.
The Application details step is required only if you have selected the Manual registration option. You are asked to provide the following information:
- Dedicated application mailbox – the email address of any user from your target Office 365 tenant. This account is used to gain access to the tenant's information, such as name, domain, etc. You cannot use the same email address to configure multiple connections to the target tenant – to configure another connection to the same Office 365 tenant, use credentials of another user.
If you intend to migrate public folders as well, the user whose email address you provide in this field needs to have Owner rights to the root public folder and any subfolders, to which you will be migrating your source data (learn more). For this reason, we recommend entering the email address of an admin account, rather than any regular user account.

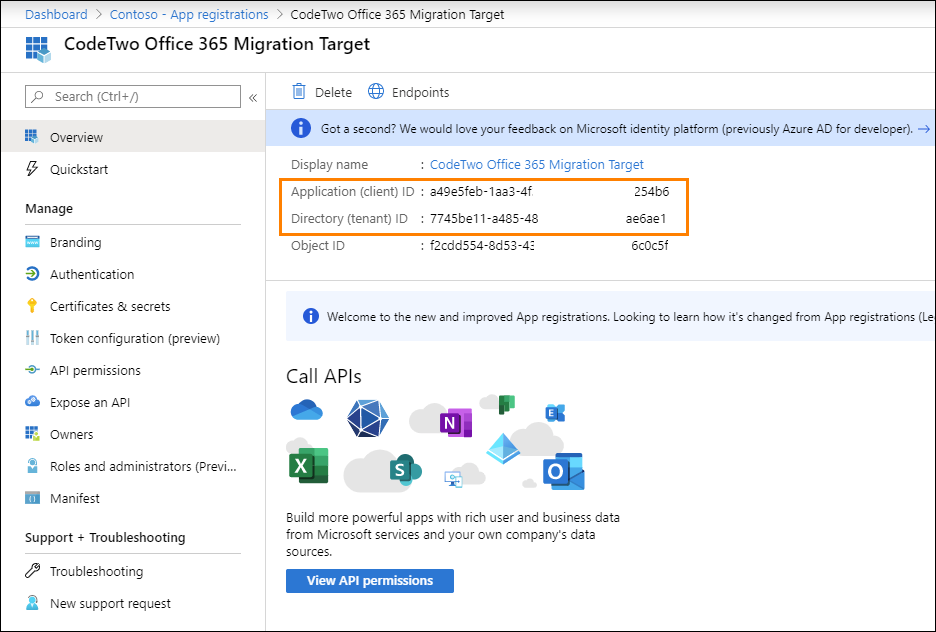

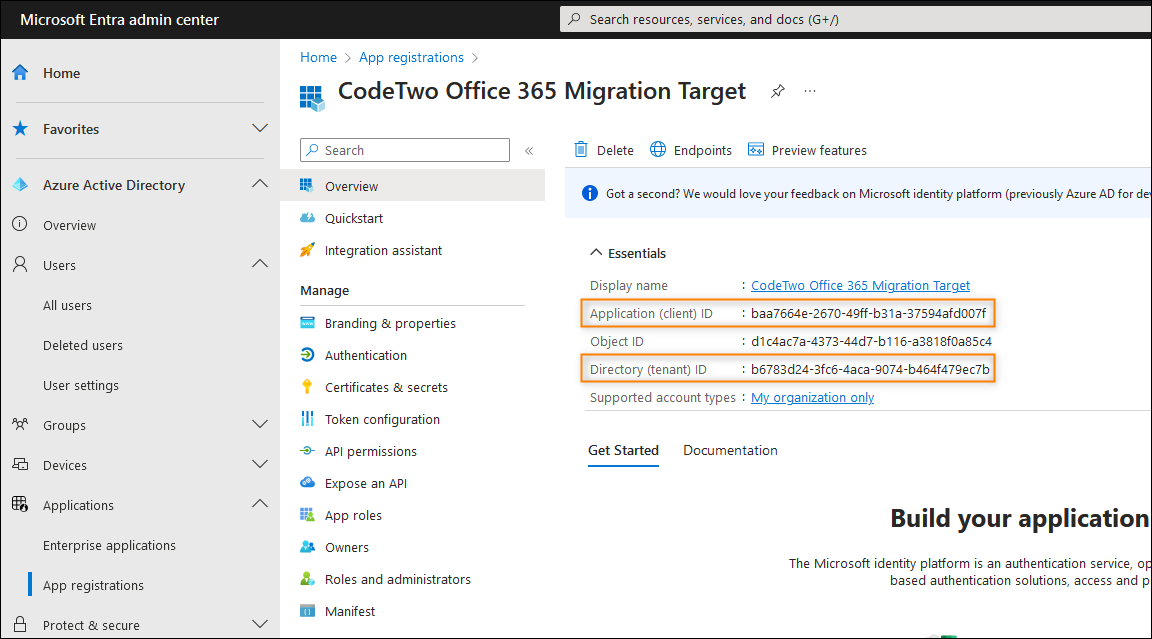

- Client ID – this is the ID assigned to CodeTwo Office 365 Migration after the application has been registered in your Azure AD. The ID can be found on the application's Overview page in Azure Active Directory admin center, under Application (client) ID (Fig. 6.).
- Tenant ID – this the ID of your Office 365 tenant. It also can be found on the application's Overview page, under Directory (tenant) ID (Fig. 6.).

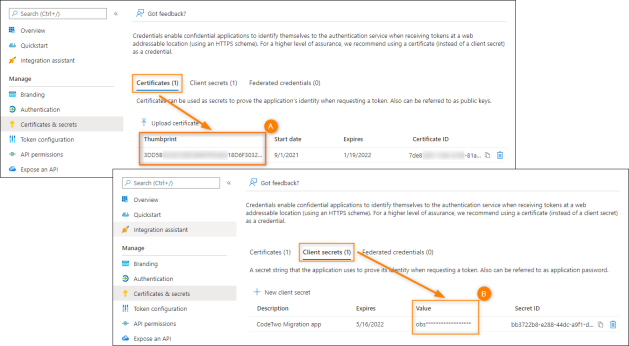

- Certificate thumbprint or Client secret – only one of these credentials needs to be provided in the wizard. You can add or view certificates and client secrets (app passwords) on the application's Certificates & secrets page in Azure Active Directory (Fig. 7.).

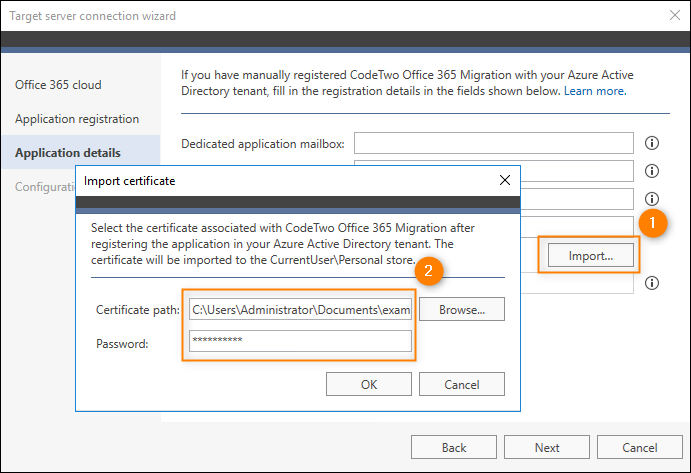

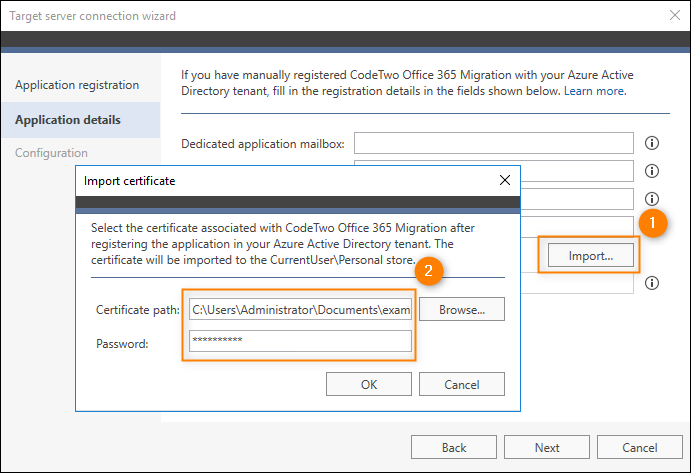

To use the Certificate thumbprint credential, your certificate needs to be signed with a 2048 bits key. The certificate also needs to be installed in the CurrentUser\Personal store. Use the Import button to open the Import certificate window (Fig. 8.), where you can select your certificate. If your certificate is already installed the CurrentUser\Personal store, simply enter the certificate thumbprint in the appropriate field in the server connection wizard.

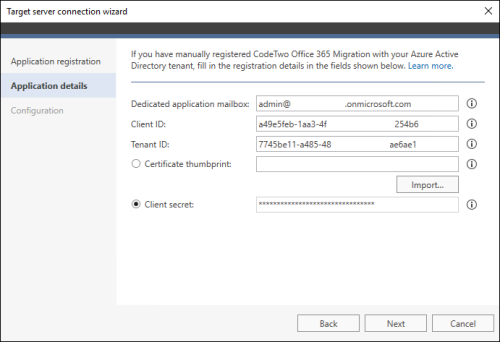

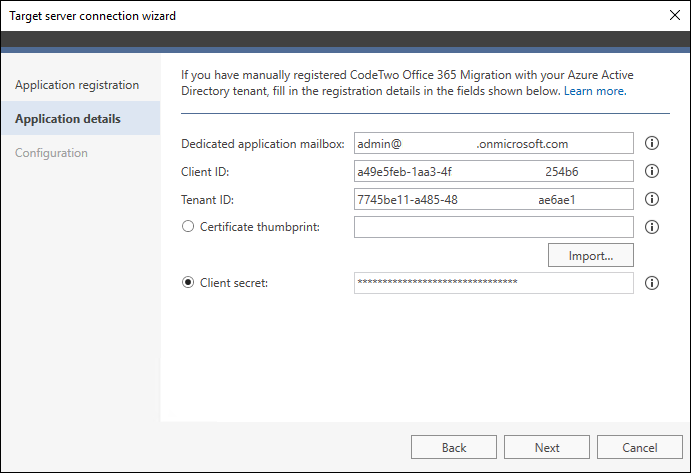

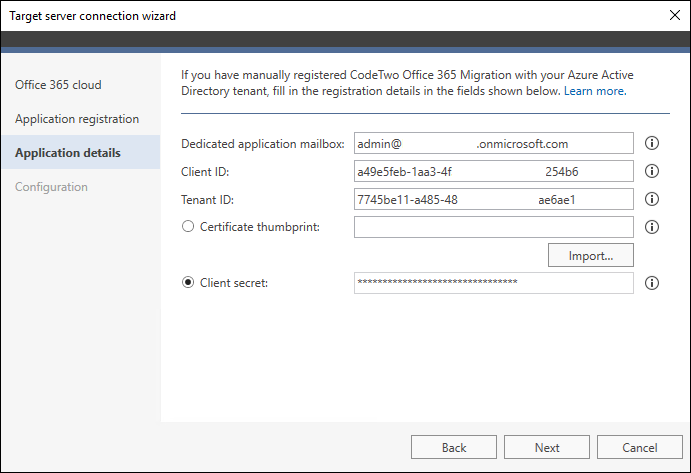

Client secret can be generated in Azure AD on the Certificates & secrets page (see Fig. 7. above). Once generated, it will be visible for as long as you remain on that page, so make sure to copy its value to the clipboard and paste it in the server connection wizard (Fig. 9.).

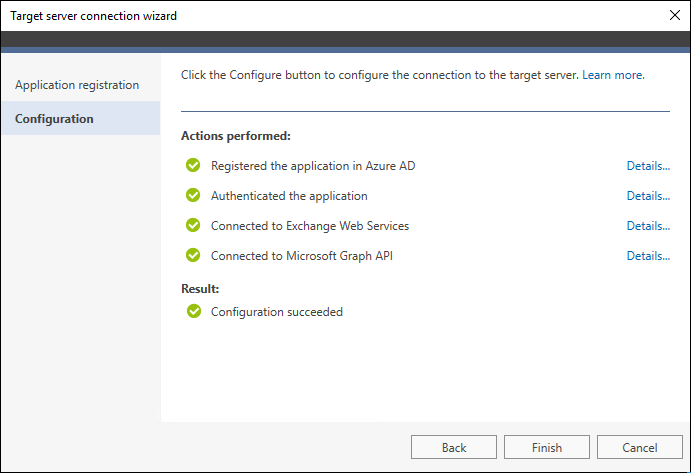

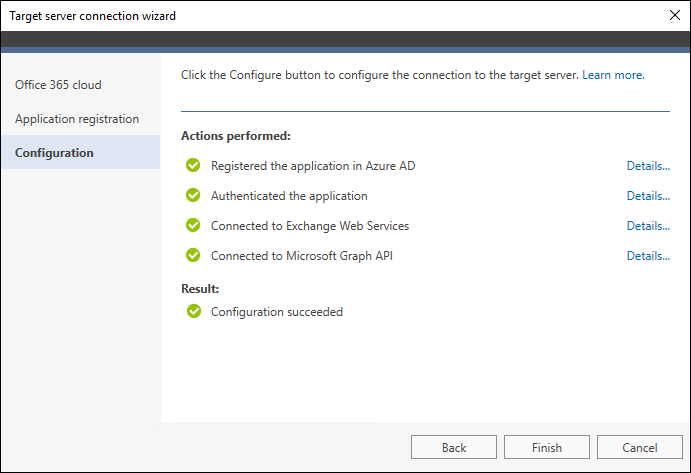

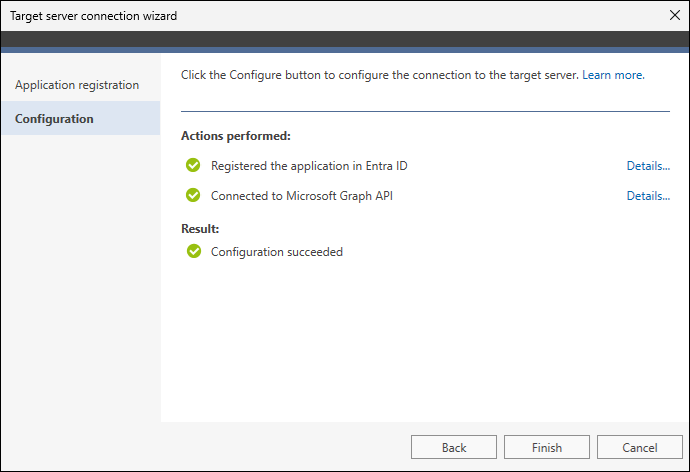

In the last step, the wizard will set up a connection between the program and your target Office 365 tenant (and register the CodeTwo migration application in your Azure AD, if you have selected the Automatic registration option in the previous step). Click Configure and verify the results (Fig. 10.).

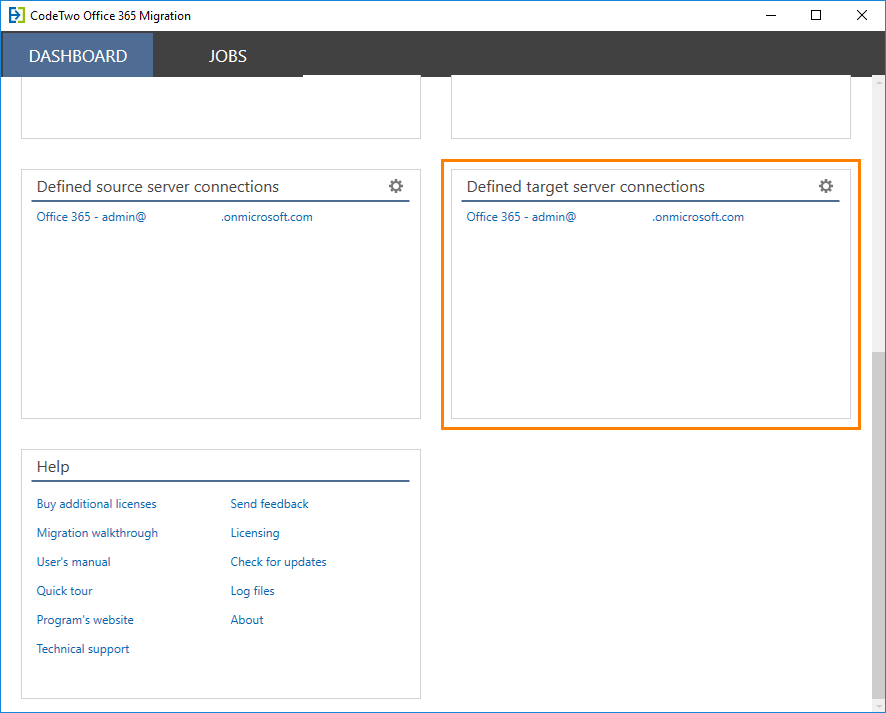

Once the setup is complete, click Finish to close the wizard, and then click OK in the Manage target server connections window to save your connection. The new connection will be displayed on the Defined target server connections card (Fig. 11.).
If you encounter any problems, see Troubleshooting.
