Remote management
It is possible in CodeTwo Exchange Rules PRO to manage the program remotely. Remote Management allows you to configure the program without physical access to Exchange Server. For example, the server installation can be controlled from another non-Exchange server or even a desktop Windows. This means the Administrator can allow the Marketing Department to remotely configure the rules related to an advertising campaign and compose the banners that will be added by the program on the server. It is possible to set specific access rights for individual users for enhanced control of the modifications that can be introduced by non-admin users.

How to connect to the server from a remote computer
How to configure the access rights on the server

How to connect to the server from a remote computer

There are two scenarios of using Remote Management.

Scenario 1.

The application can be installed on a desktop computer without Exchange Server application. After installing the desktop version, the user can connect to the server version of the application and manage the rules remotely. In order to do this, click Remote Access button located on the main toolbar of CodeTwo Exchange Rules PRO (Fig.1.).

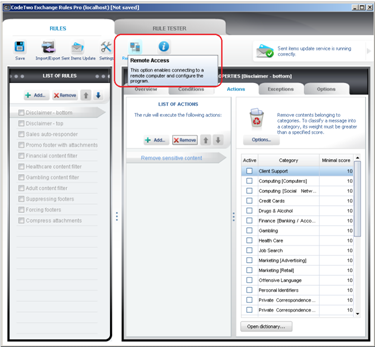

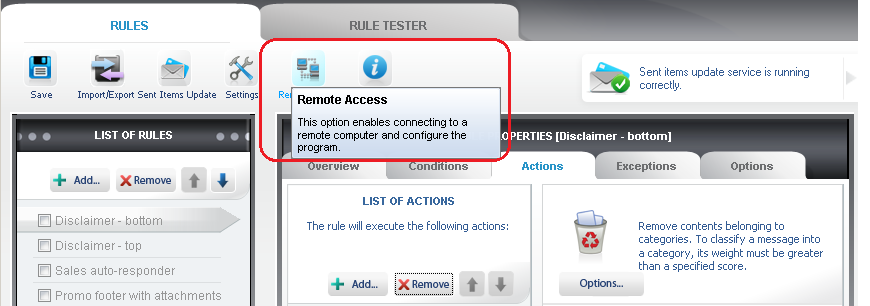

Remote Access button located on the program main toolbar
Fig.1. Remote Access button located on the program main toolbar

In the result pane provide the user logon credentials that is permitted to access the installation remotely and the name or IP of the server with the communication port of the server the program is deployed on (Fig.2.). Once it is done, click Connect. On connecting the Remote Access button in the toolbar will change to Disconnect.

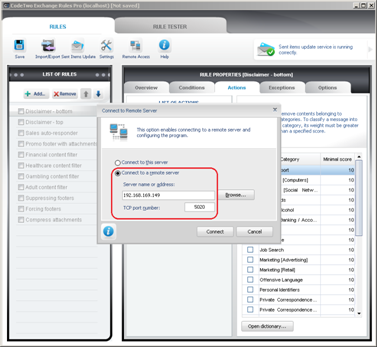

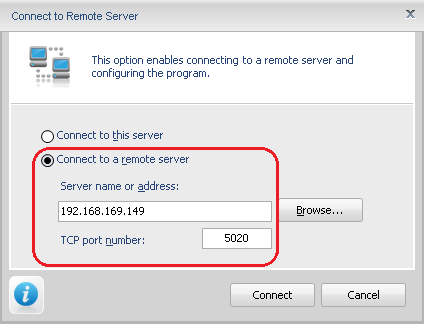

Connecting to the server remotely
Fig.2. Connecting to the server remotely.

When the desktop version is connected to the server, every rule modification is reflected directly there. The scope of modifications that can be introduced by the user are governed by the rights granted in the server installation of Exchange Rules PRO. After the rules are configured, save them by clicking the Save button and disconnect from the server by clicking the Disconnect button in the toolbar (Fig.3.).

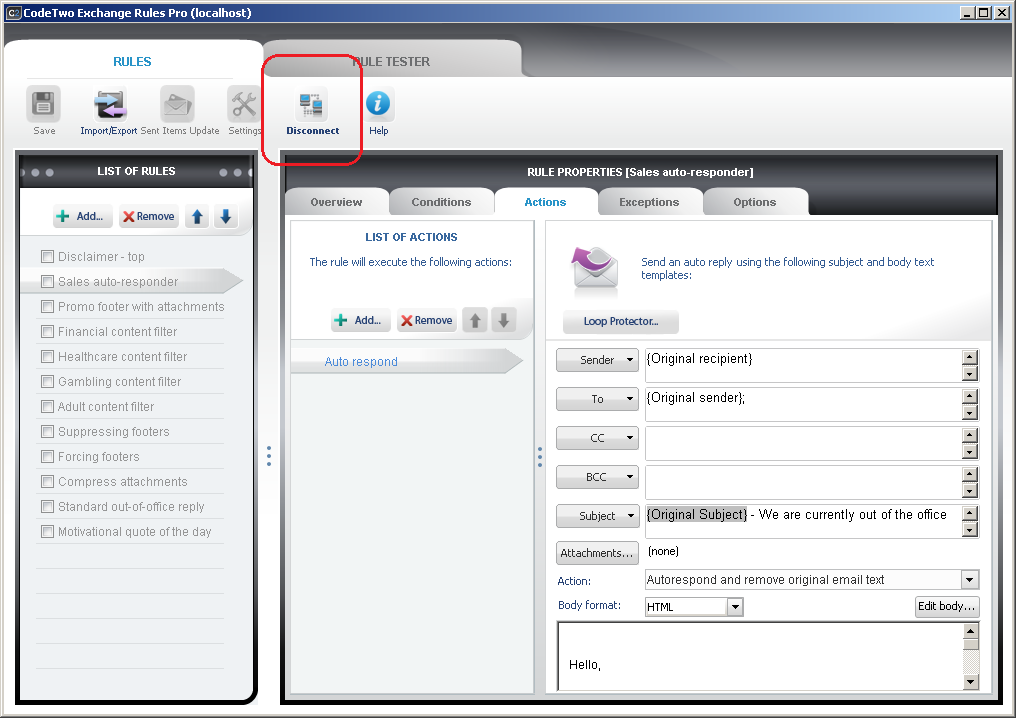

Disconnecting from the server
Fig.3. Disconnecting from the server.

Please click the following link to download the desktop version of CodeTwo Exchange Rules PRO.

Scenario 2.

In this scenario, the user can define the rule locally and export it to the network or shared drive. After it is done, you can import the rule after connecting to the server version of the application.

After installing the desktop version of the application, set up the rule that you wish to export to the server. To do this, click Import/Export button located on the main toolbar of CodeTwo Exchange Rules PRO (Fig.4.), choose Export settings and select the location on the remote or shared drive to save the settings file.

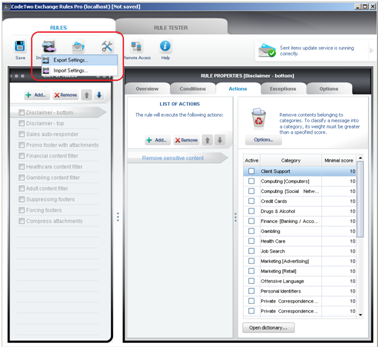

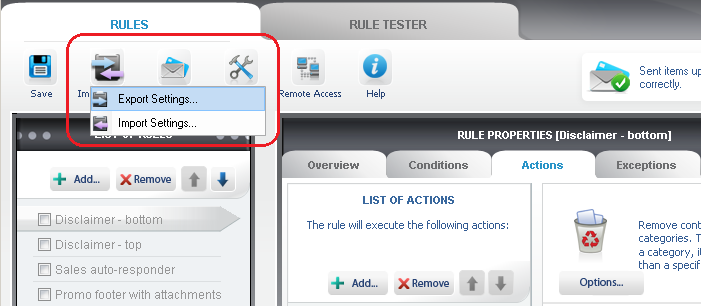

Import/Export button located on the program main toolbar
Fig.4. Import/Export button located on the program main toolbar.

After doing this, you can connect to the server where the CodeTwo Exchange Rules PRO server application is installed. In order to do this, click Remote Access button located on the main toolbar of CodeTwo Exchange Rules PRO (Fig.5.).

Remote Access button located on the program main toolbar
Fig.5. Remote Access button located on the program main toolbar.

In the result pane provide the user logon credentials and the name or IP of the server with the communication port of the server the program is deployed on (Fig.6.). Once it is done, click Connect. On connecting the Remote Access button in the toolbar will change to Disconnect.

Connecting to the server remotely
Fig.6. Connecting to the server remotely.

After connecting to the server, you need to import the settings file that was saved on the network or shared drive. To do this, click Import/Export button located on the main toolbar of CodeTwo Exchange Rules PRO (Fig.4.), choose Import settings and find the location on the remote/shared drive to load the settings file.

After the rules are imported, save them by clicking the Save button and disconnect from the server by clicking the Disconnect button in the toolbar (Fig.7.).

Disconnecting from the server
Fig.7. Disconnecting from the server.

Please click the following link to download the desktop version of CodeTwo Exchange Rules PRO.


How to configure the access rights on the server

Exchange Rules PRO enables you to set permissions for users who will need to access and modify the program configuration from another machine. This is a very convenient feature as otherwise Exchange admins would need to take complete care of the program administration or allow access to the Exchange Server, which is rarely practised.

In order to configure the rights for other users click the Settings button in the ribbon and go to the Remote Access tab. To enable remote logons the Allow remote connections to this machine must be turned on. You can change the default port of communication. By clicking the Manage access rights button you open the Remote Access Permission window (Fig.8.).

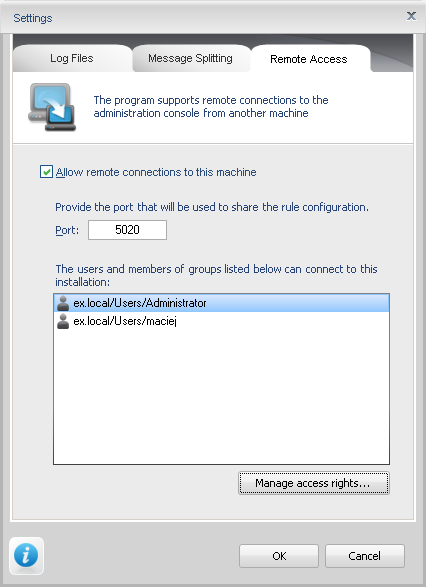

Remote Access tab in the Settings menu.
Fig.8. Remote Access tab in the Settings menu.

Use the Add user and Add group buttons to configure the access rights for individual AD users or AD groups respectively. To disable a user or group from accessing the server, highlight the object and use the Remove button.

The user or group can be given Full access, by which they can make all possible modifications to the server installation, or Custom access, which enables you to finely select the allowed actions (Fig.9.).

The following actions can be enabled in Custom Access:
  1. User or group of users can create new rules;
  2. User or group of users can import settings from a remote server;
  3. User or group of users can be allowed to see all or selected rules only;
  4. User or group of users can modify visible rules;
  5. User or group of users can delete visible rules.

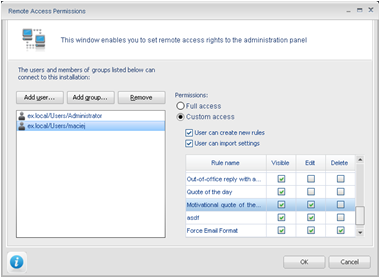

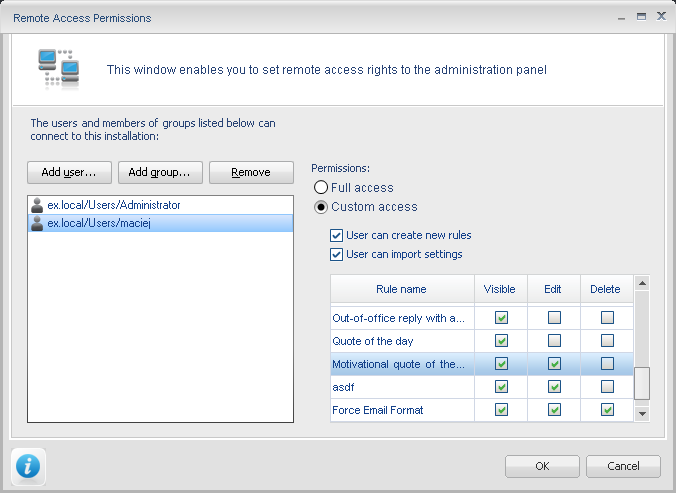

Remote Access Permission window.
Fig.9. Remote Access Permission window.
