Scope of senders

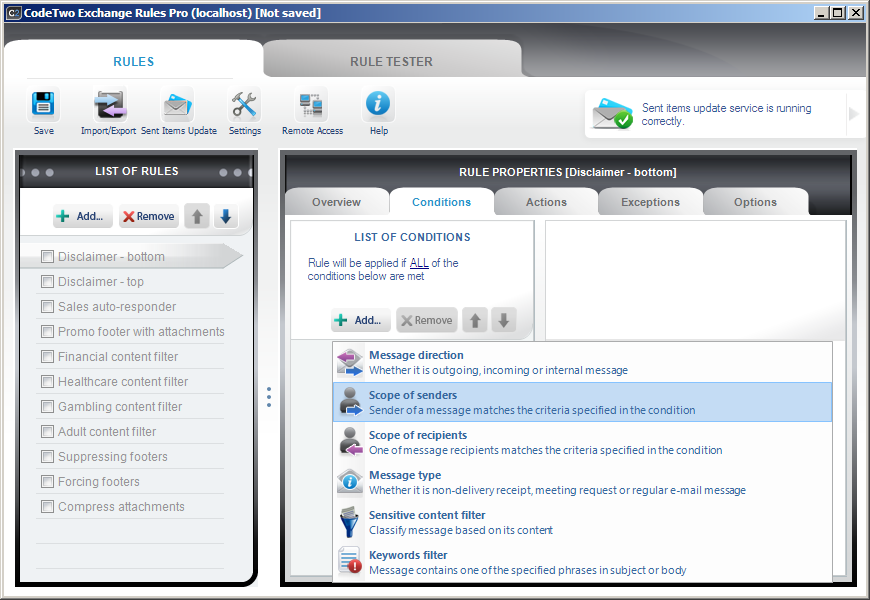

Before CodeTwo Exchange Rules PRO processes the message and performs any actions, it checks the defined conditions. If the message meets the defined conditions, then it is processed. If not, the rule will not apply and no action will be taken. One of the available conditions is the Scope of senders. To define the Scope of senders on the Conditions tab click Add and choose Scope of senders (Fig.1.).

If you do not add Scope of senders to the list of Conditions, the rule will apply to messages sent by all senders.

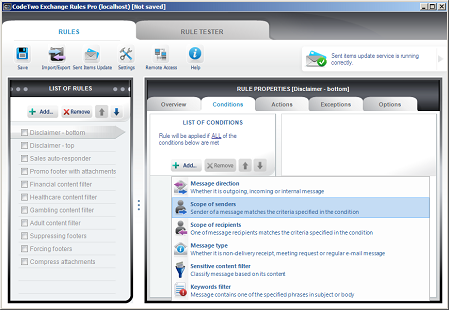

Choosing Scope of senders in the Conditions tab.
Fig.1. Choosing Scope of senders in the Conditions tab.

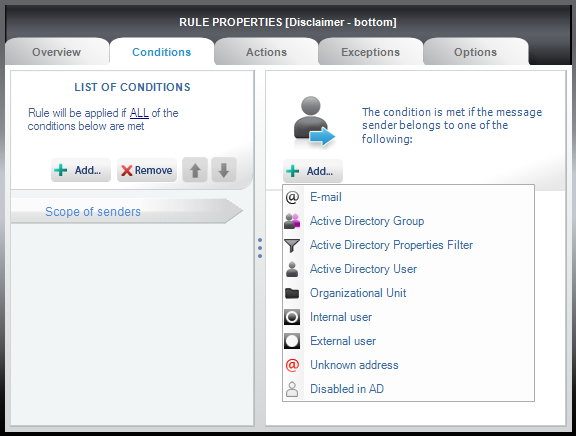

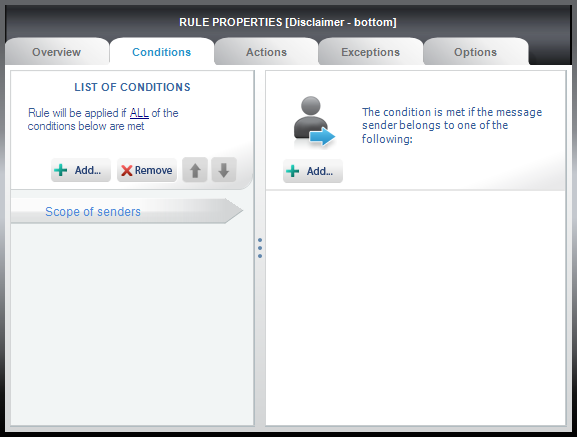

The Scope of senders will be added to the list of conditions in the middle pane, while the right pane will show the condition properties (Fig.2.). Click Add in the properties pane to define the senders. The following options are available to define the scope of senders: e-mail address, Active Directory group and users, organizational unit, internal and external users to the organization, unknown address and disabled users in Active Directory (Fig.3.). If no option is defined, the rule will apply to all senders.

Scope of senders on the list of conditions. List of available elements to define Scope of senders.
Fig.2. Scope of senders on the list of conditions. Fig.3. List of available elements options to define Scope of senders.

By default the program will process the message and apply the rule if all of the conditions are met (there is logical AND relationship between the conditions). In the example below the rule will be applied only when the user is the Administrator (Fig.4.) and the message type is: new mail message or reply/forward message (Fig.5.) i.e. the message must meet both Condition #1 and Condition #2 for the rule to apply.

Condition: the user is the Administrator. Condition: message type is: new, reply or forward.
Fig.4. Condition #1: the user is the Administrator. Fig.5. Condition #2: message type is: new, reply or forward.

You can change the logic of conditions when you click on the word ALL. The word ALL will be replaced by ANY, which means that the rule will apply if at least one condition is met (there is a logical OR relationship between the conditions). In the example below for the rule to apply the user has to be the Administrator (Fig.6.) or the message type is: new mail message or reply/forward (Fig.7.) i.e. the message must meet Condition #1 or Condition #2 for the rule to apply.

Condition: the user can be Administrator..  Condition: message type can be: new, reply or forward..
Fig.6. Condition #1: the user can be Administrator. Fig.7. Condition #2: message type can be: new, reply or forward.

Below you can learn about all available options to define the Scope of senders:

E-mail

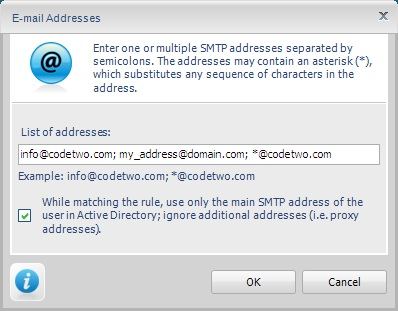

If you want to define senders' addresses for the program to check before processing any messages, you need to choose Add, and then select E-mail (Fig.8.). In the new window (Fig.9.) you can a single email address or if you want to define multiple addresses type in the e-mail addresses separated by semi-colon, or domain address with an asterisks (*) to include multiple addresses from the same domain.

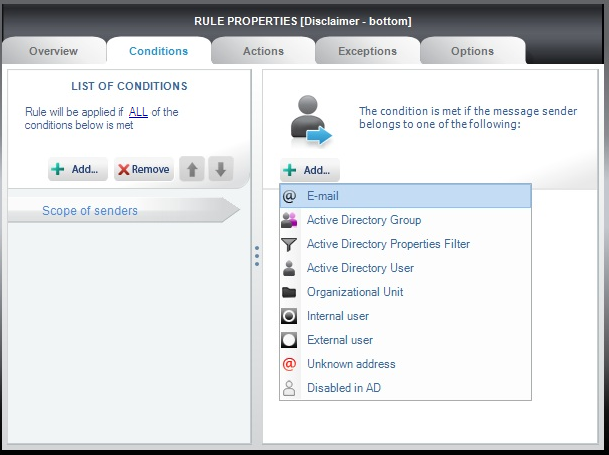

Choosing e-mail address for the scope of senders. Defining the sender's e-mail address.
Fig.8. Choosing e-mail address for the scope of senders. Fig.9. Defining the sender's e-mail address.

Active Directory Group

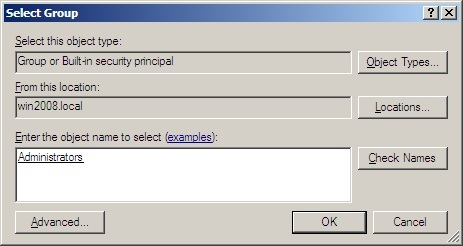

If you want to define a group of senders from the Active Directory you need to choose Add (Fig.10.), and then Active Directory Group. In the new window (Fig.11.), you can search for the desired group of senders (in this example it is the group of Administrators).

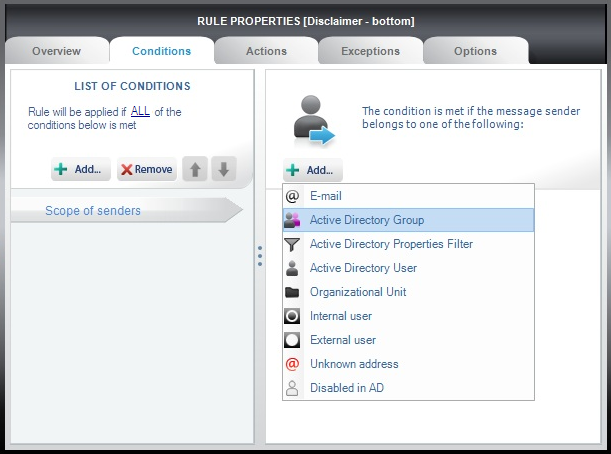

Choosing group in Active Directory.. Searching and defining group in Active Directory..
Fig.10. Choosing group in Active Directory. Fig.11. Searching and defining group in Active Directory.

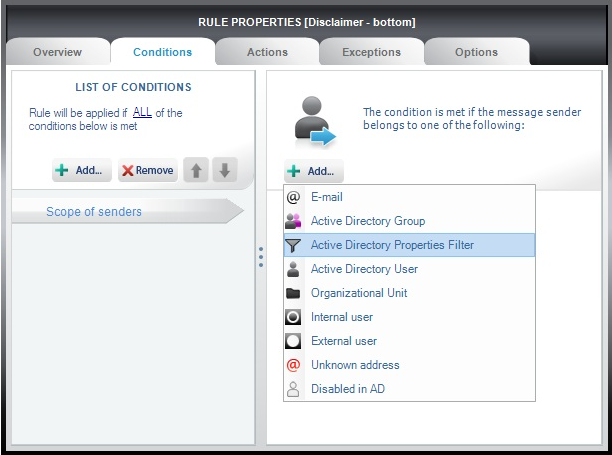

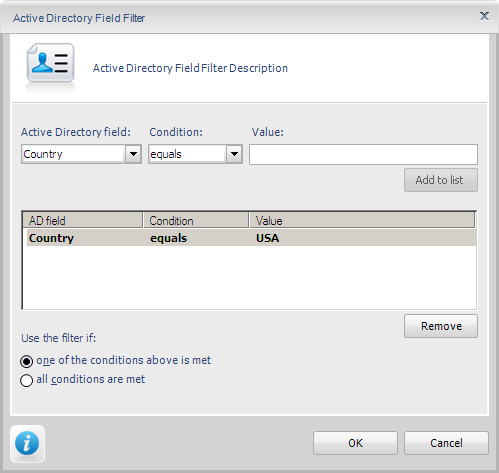

Active Directory Properties Filter. Another useful option is the properties filter in Active Directory. If you want to use this option choose Add, and then Active Directory Properties Filter (Fig.12.). In the new window you can define various fields. In this example below the condition is: if the AD field Country equals USA then the rule will be applied (Fig.13.). Additionally you may check whether one of the conditions above is met or all conditions are met from the properties' filter list.

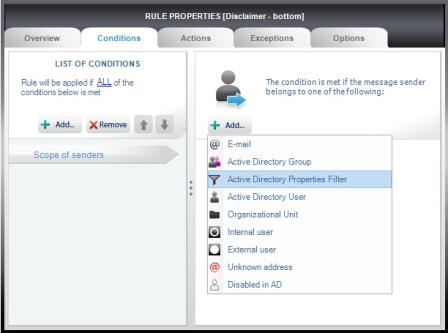

Choosing properties filter in w Active Directory.. Properties filter window in  Active Directory..
Fig.12. Choosing properties filter in w Active Directory. Fig.13. Properties filter window in Active Directory.

Active Directory User

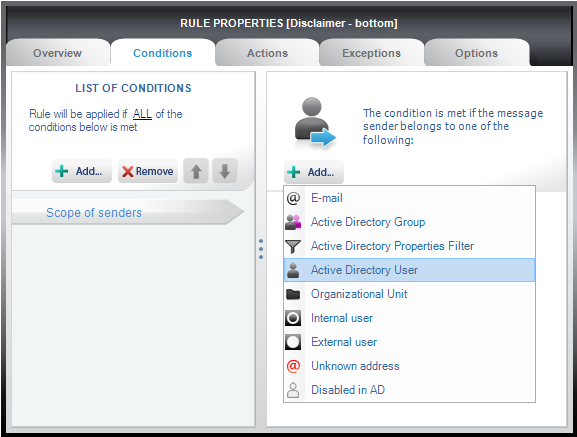

You can also search for a specific user in Active Directory. In order to do it, you need to choose Add, and then select Active Directory User (Fig.14 & 15.).

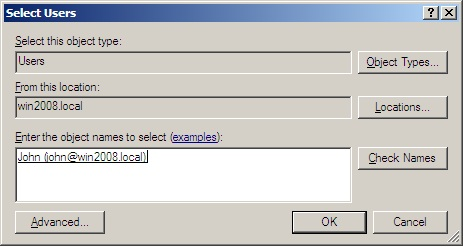

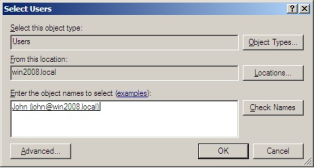

Choosing an option to search for a user in Active Directory.. Searching specified user in Active Directory..
Fig.14. Choosing an option to search for a user in Active Directory. Fig.15. Searching specified user in Active Directory.

Organizational Unit
If you want to define an Organizational Unit for the scope of senders you need to choose Add, and then select Organizational Unit (Fig.16 & 17.).

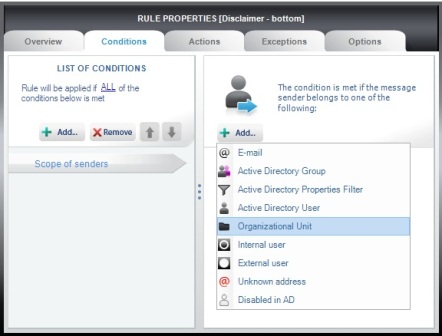

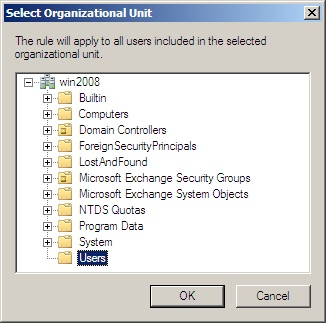

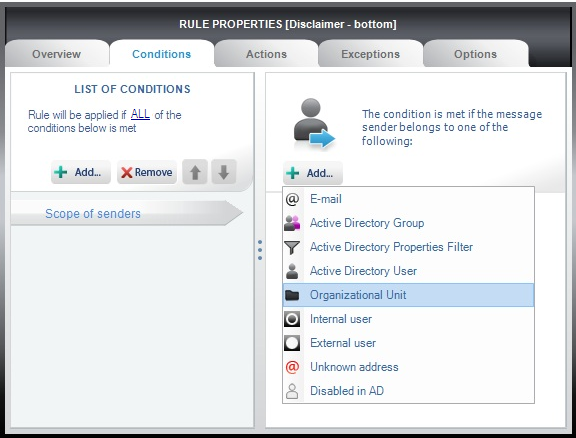

Choosing option to search for Organizational Unit.. Window to search for Organizational Unit..
Fig.16. Choosing option to search for Organizational Unit. Fig.17. Window to search for Organizational Unit.

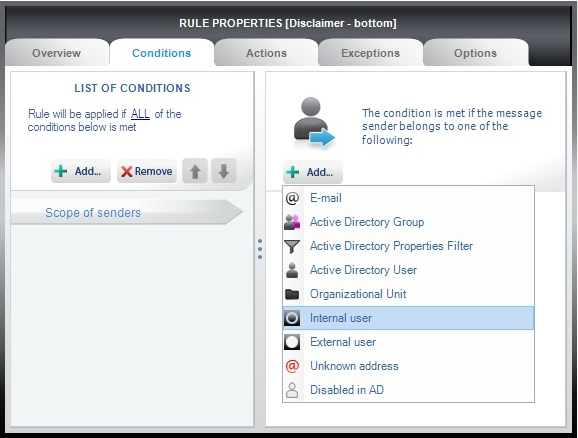

Internal User

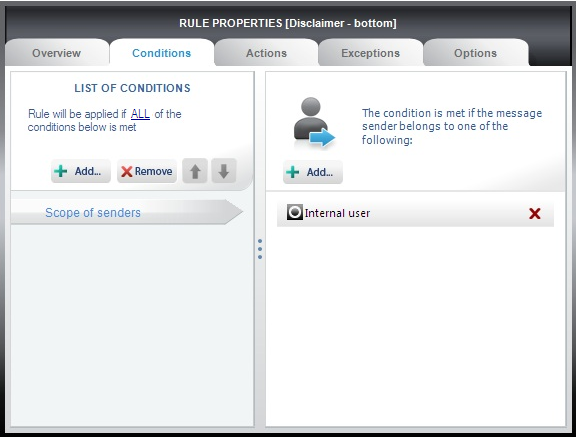

It is also possible to use all internal users as the scope of senders. To use this option you need to choose Add, and then select Internal User (Fig.18 & 19.). This element doesn't have any additional options, it is only displayed on the conditions list (Fig.19.).

Choosing the option for internal users.. The rule will be applied for internal users..
Fig.18. Choosing the option for internal users. Fig.19. The rule will be applied for internal users..

External User

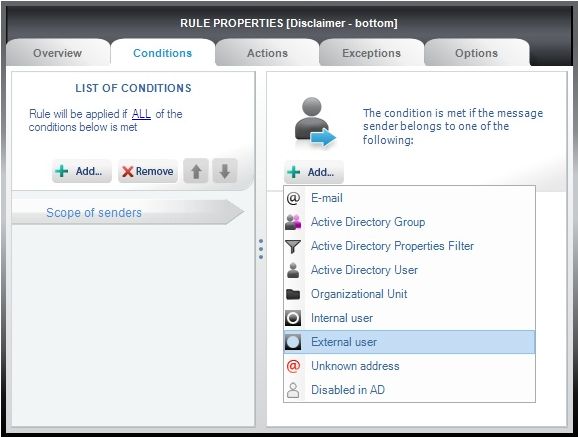

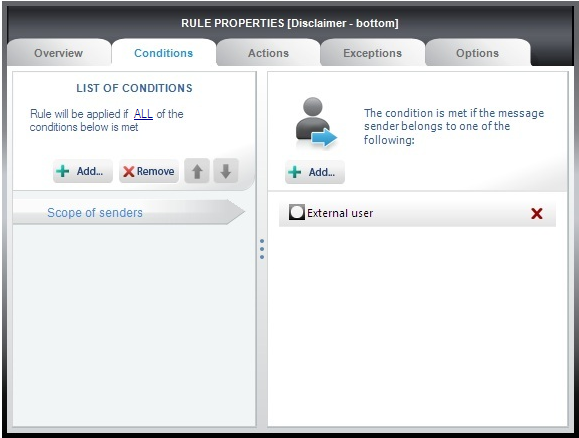

Similarly, you can define the external users. To set it up, choose Add, and then select External User (Fig.20.).

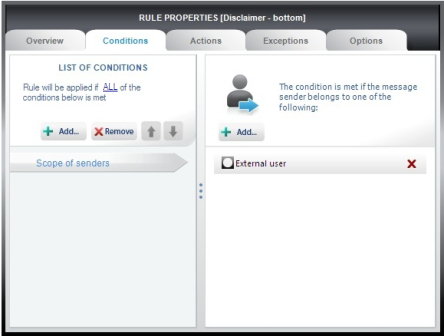

Choosing the option for external users.. The rule will be applied for external users..
Fig.20. Choosing the option for external users. Fig.21. The rule will be applied for external users.

Unknown address

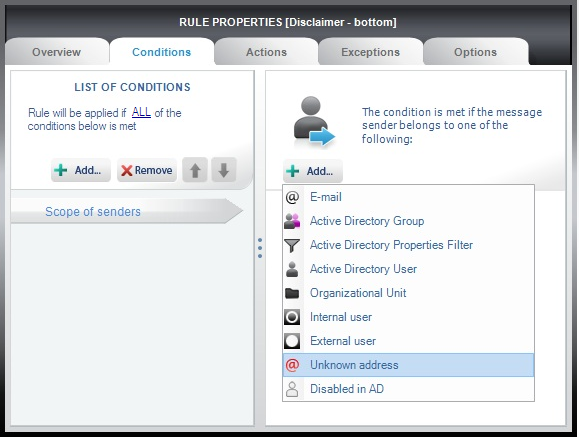

Another option is a condition for users with unknown address. You can activate it when you choose Add, and then select Unknown address (Fig.22 & 23.).

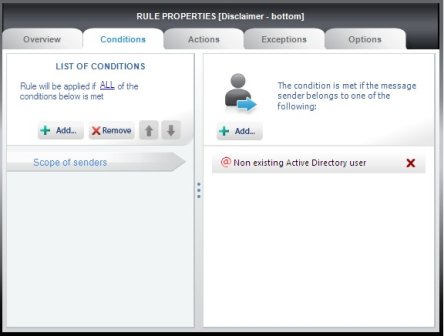

Choosing the condition for the unknown address.. The rule will be applied for the unknown address..
Fig.22. Choosing the condition for the unknown address. Fig.23. The rule will be applied for the unknown address.

Disabled in AD

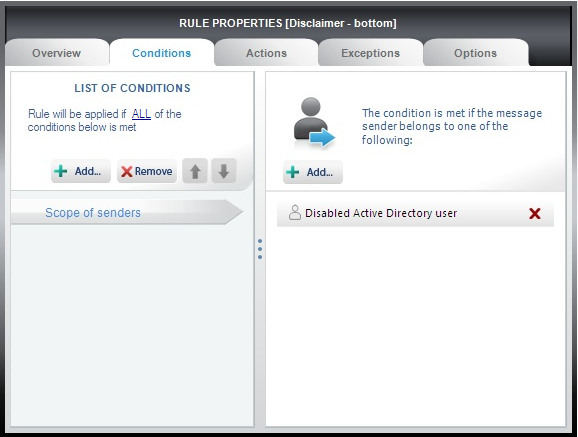

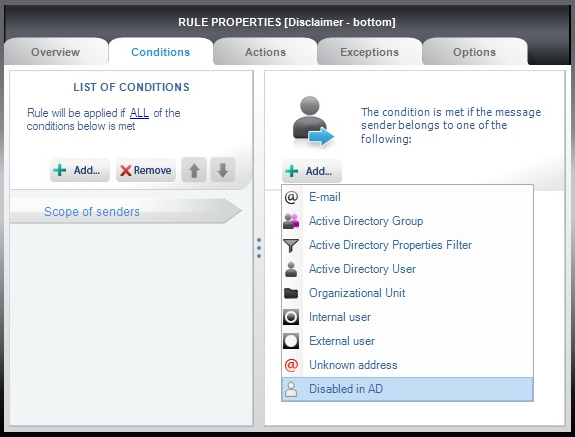

The last element for the scope of senders condition is for the disabled users in Active Directory. If you want to use it, you need to choose Add, and then select Disabled in AD (Fig.24 & 25.).

Choosing the condition for the disabled user in Active Directory.. The rule will be applied for the disabled user in Active Directory..
Fig.24. Choosing the condition for the disabled user in Active Directory. Fig.25. The rule will be applied for the disabled user in Active Directory.
