If you are using CodeTwo Exchange Rules 2010 version 1.x or older, please consult this User's Manual.

Scheduler
This feature enables to set the specified time during which the rule works. Here, you have two options to choose from. The first default option will schedule the rule to work continuously without any time limits (Fig.1.).

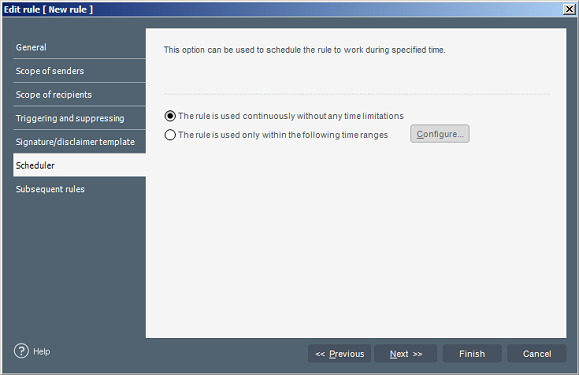

The Scheduler window.
Fig.1. The Scheduler window.

The second one allows to set the rule to work within the chosen time ranges. After ticking it and clicking the Configure... button located on the right you will be able to set different Recurrence patterns with time ranges of your rule: Custom, Daily, Weekly or Monthly (Fig.2.).

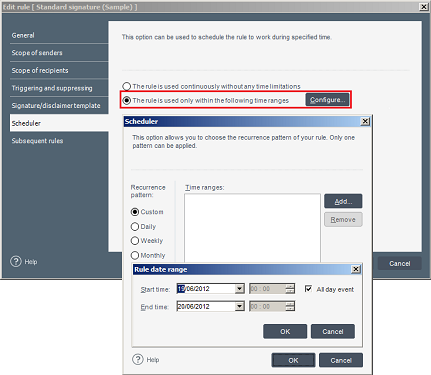

TThe Scheduler editor with the Add button of Custom Recurrence pattern expanded.
Fig.2. The Scheduler editor with the Add button of Custom Recurrence pattern expanded.


In the rule Date range window there is the default option All day event checked with the hours selection grayed out. To set a specific hours during which the rule will apply uncheck the All day event box and choose your settings (Fig.3.).

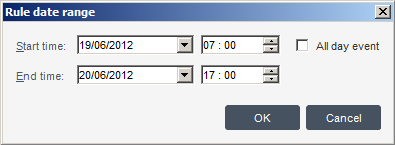

Specifying the start and end hours range of the rule.
Fig.3. Specifying the start and end hours range of the rule.


The built in Scheduler editor besides the Custom Recurrence pattern provides also the predefined Daily, Weekly and Monthly patterns. Each of these patterns offers different settings such as days, weeks, months selection etc. exemplified in Fig.4., Fig.5. and Fig.6. below.

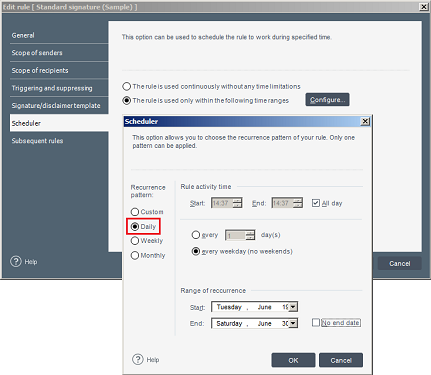

TThe Scheduler editor with the Add button of Daily Recurrence pattern expanded.
Fig.4. The Scheduler editor with the Add button of Daily Recurrence pattern expanded.

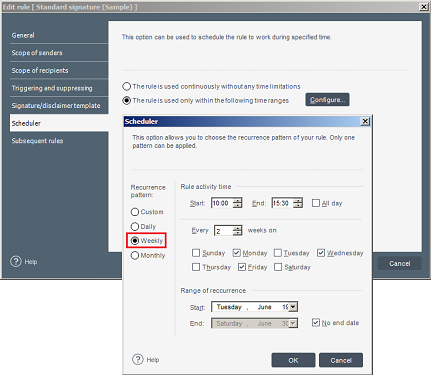

TThe Scheduler editor with the Add button of Weekly Recurrence pattern expanded.
Fig.5. The Scheduler editor with the Add button of Weekly Recurrence pattern expanded.


TThe Scheduler editor with the Add button of Monthly Recurrence pattern expanded.
Fig.6. The Scheduler editor with the Add button of Monthly Recurrence pattern expanded.


Please note that only one pattern can be applied to each rule at once.

To get help with using the Scheduler editor click the Help icon located in the left bottom corner of the editor's window.
